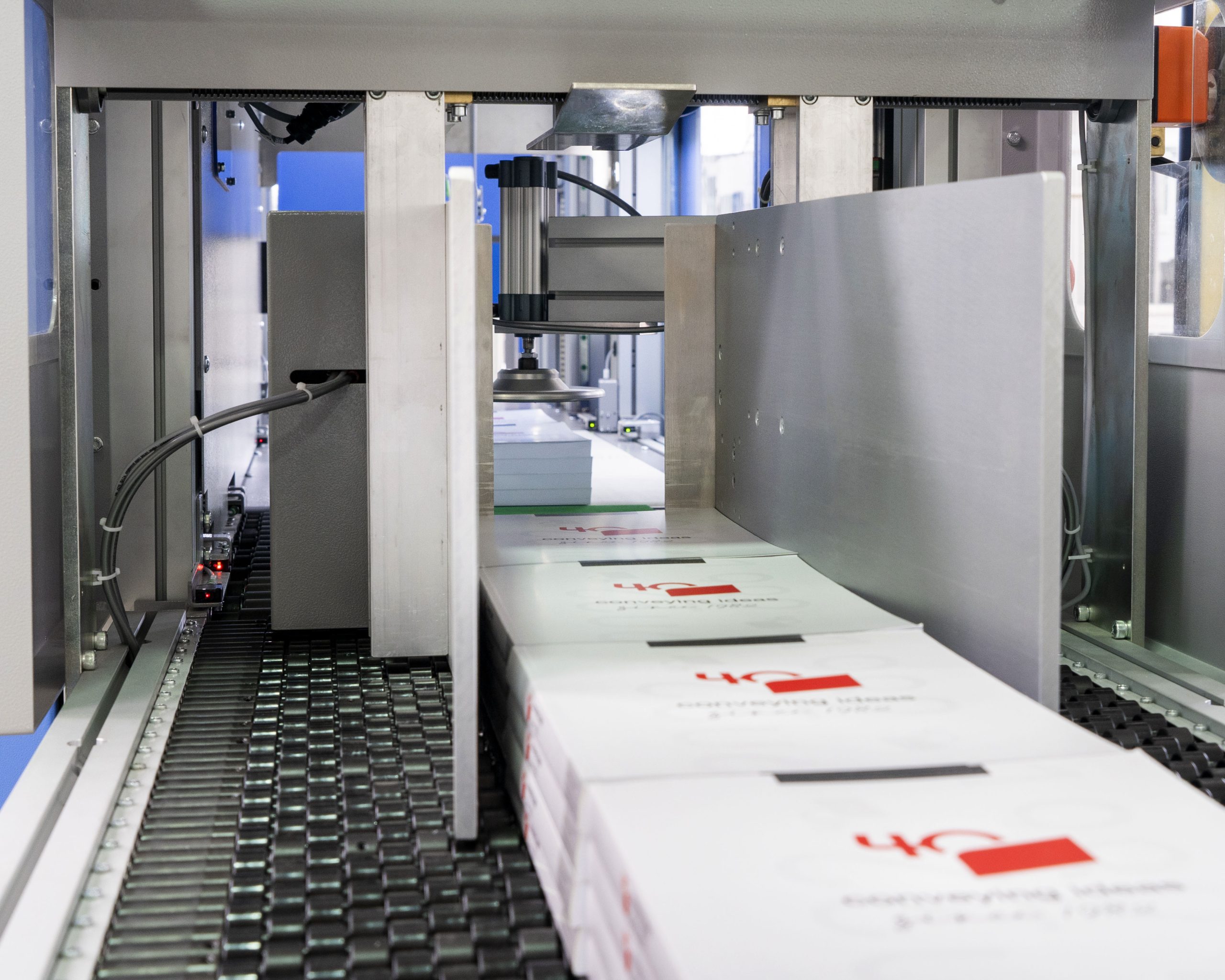

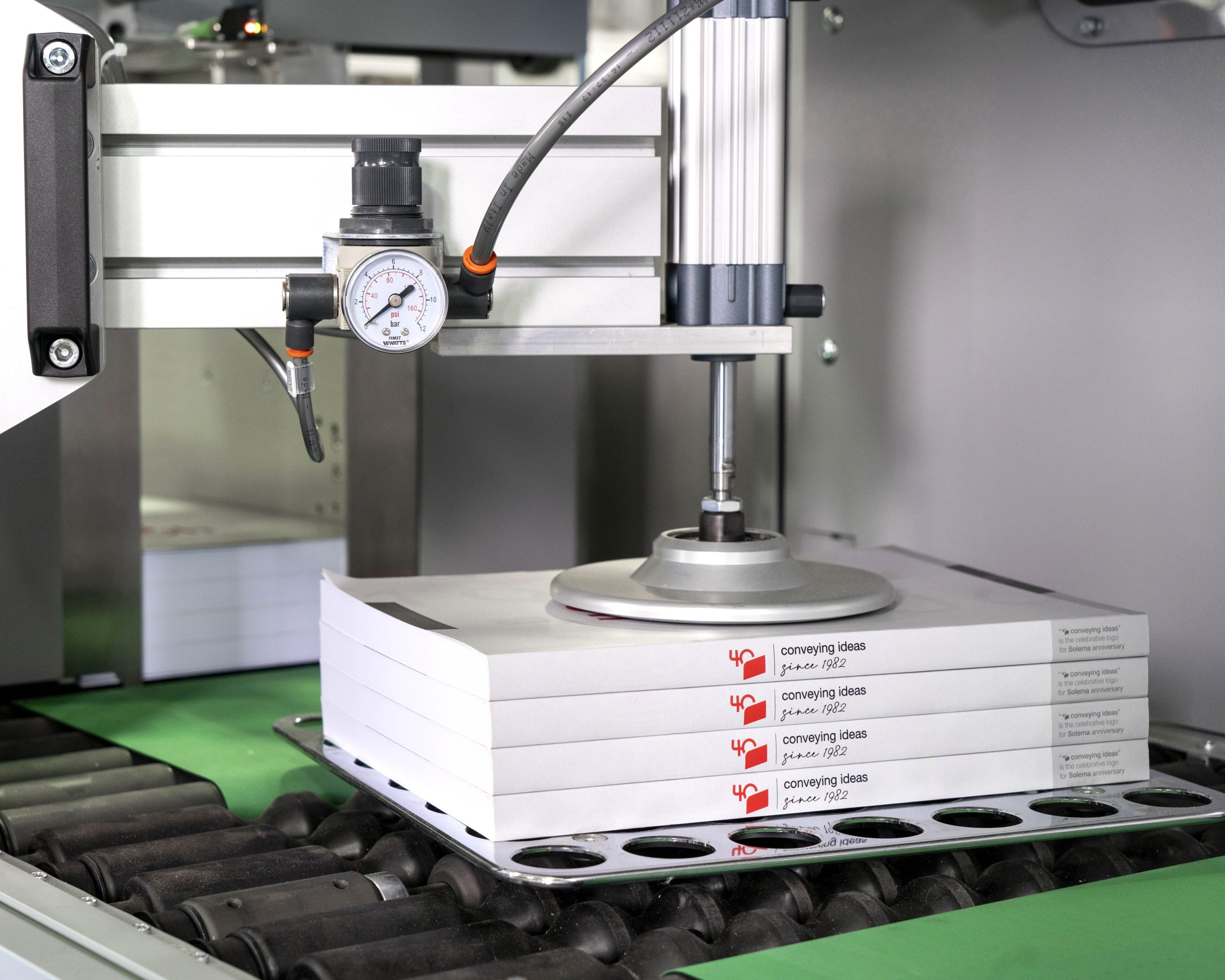

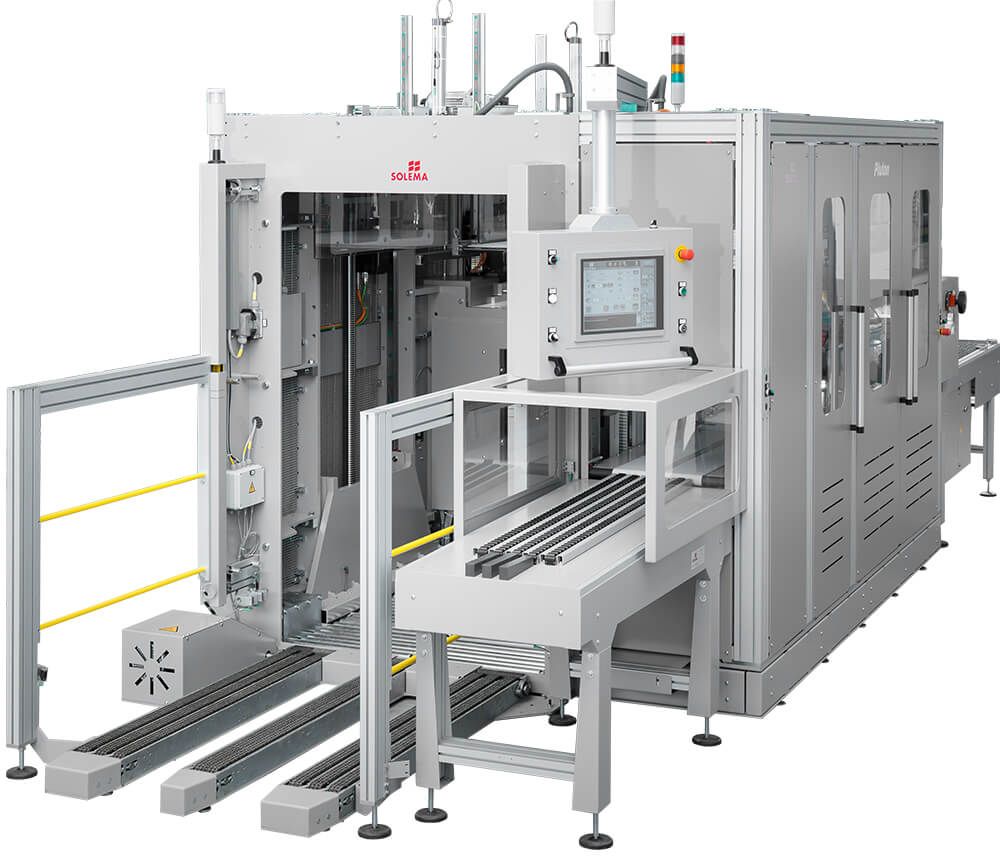

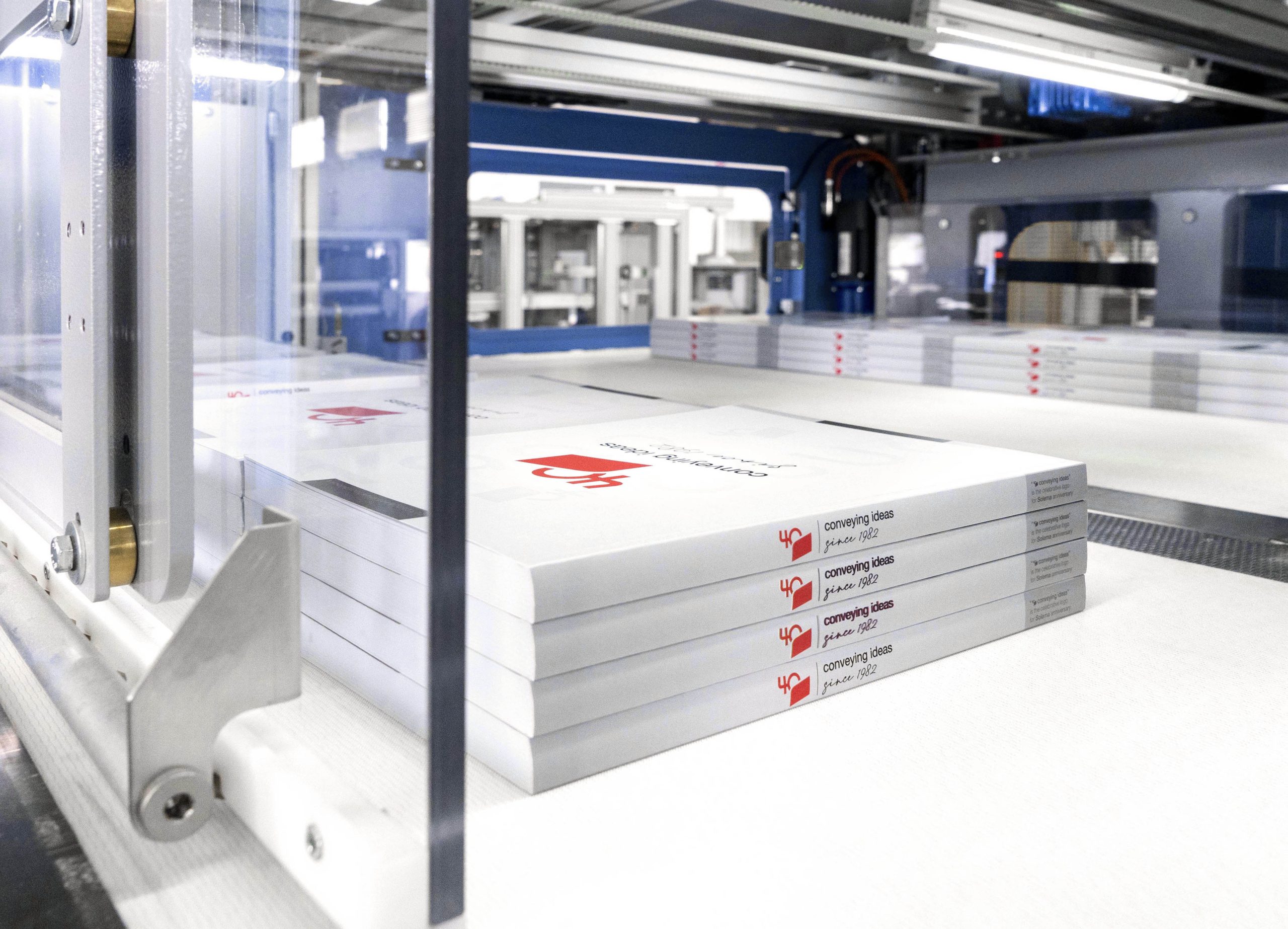

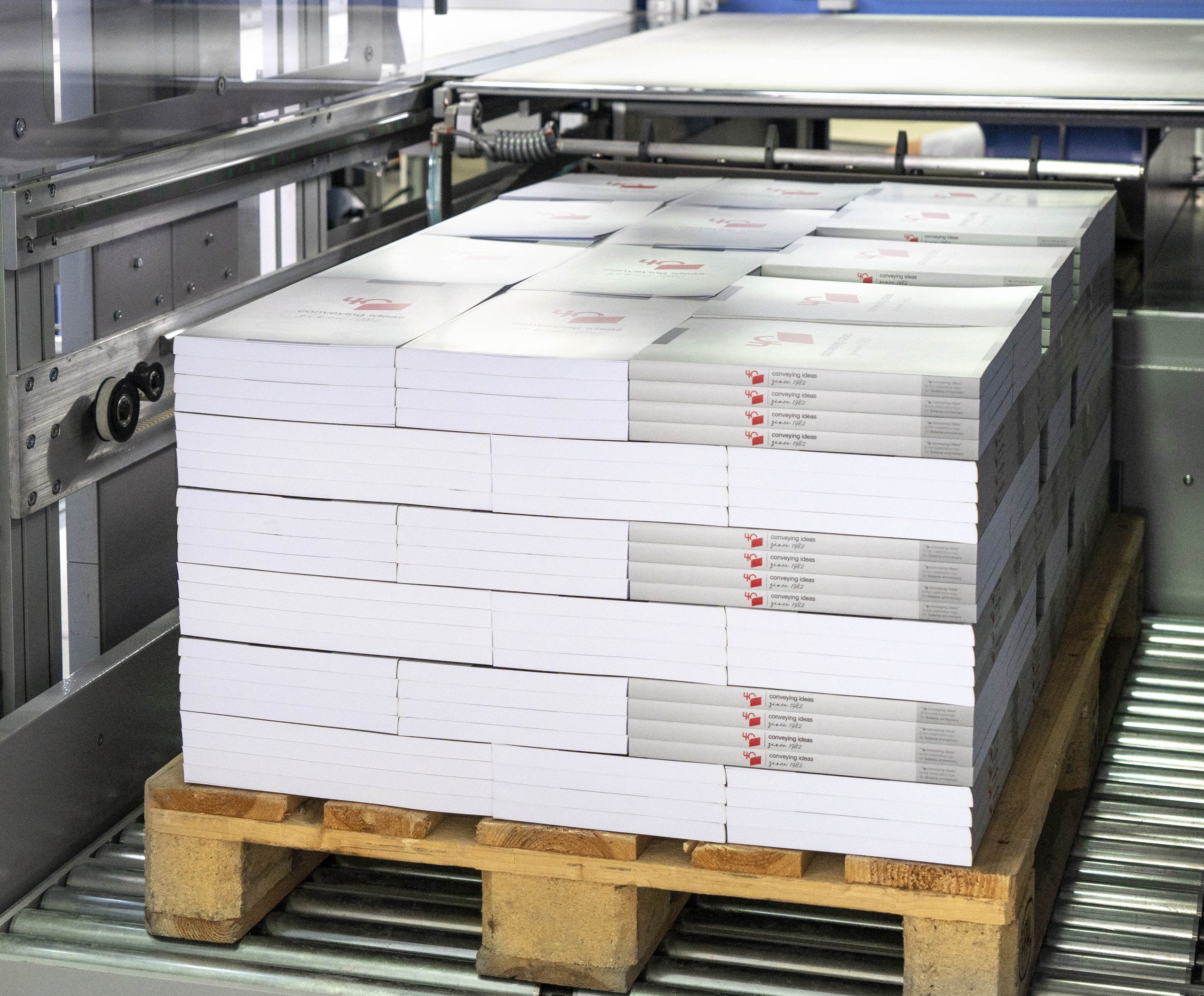

PLUTON is a compact automatic palletizer designed for high-efficiency end-of-line handling of books, magazines, catalogues, cardboard boxes and other packaged products. It combines continuous product jogging, linear transport and automatic pallet and slip-sheet handling to create stable, accurately aligned pallet loads. With speeds of up to 25 piles per minute, PLUTON provides a reliable automation solution for graphic arts, paper converting and packaging applications.
PLUTON can be used to palletize: Hard and Soft cover books, sewn and glued book blocks, magazines, catalogues and phone directories, shrink-wrapped piles or bundles, carton boxes, strapped/blocked signatures, newspapers.
| Machine speed | max. 25 piles/minute |
| Product dimensions (L x W x H) | min. 150 × 110 × 60 mm
(5 7⁄8 × 4 5⁄16 × 2 3⁄8”) max. 500 × 320 × 300 mm (19 3⁄4 × 12 5⁄8 × 11 13⁄16”) |
| Pallet dimensions (L x W x H) | min. 800 × 700 × 130 mm
(31 1⁄2 × 27 1⁄2 × 5 1⁄8”) min. 640 × 700 × 130 mm with opt. kit (25 1⁄4 × 27 1⁄2 × 5 1⁄8”) max. 1270 × 1060 × 170 mm (50 5⁄8 × 41 3⁄4 × 6 11⁄16”) |
| Pallets storage capacity | 900 mm (35 1⁄2”) meaning 5 — 7 pallets |
| Size-change | automatic through servo-motors |
