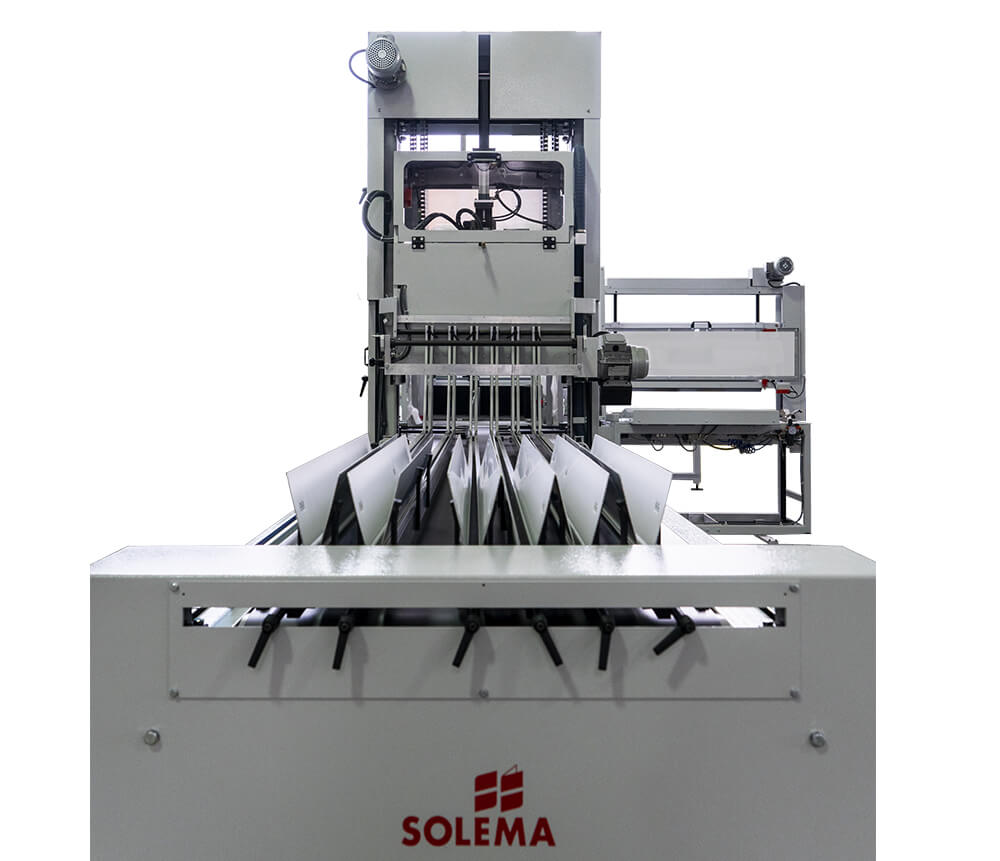

ANDAX is an automatic partition assembly machine designed for producing corrugated board partitions for a wide range of packaging applications. It can process corrugated board from E-flute to double-wall grades, including microflute, and assemble configurations with multiple cells and locking shapes. With production speeds of up to 50 partition sets per minute and optional automatic feeding and batching systems, ANDAX provides a flexible and efficient solution for industrial partition production.
Automatic assembly machine for corrugated board partitions
| Products | A — B — C — E — BC flutes, min. 1.6 mm (8⁄128”) |
| Speed | max. 50 partitions/minute |
| Longitudinal elements lenght | automatic version: max. 850 mm (33 4⁄8”)
manual version: max. 1150 mm (45 9⁄32”) |
| Trasversal elements lenght | max. 540 mm (21 1⁄4”) |
| Partition’s height | min. 50 mm (1 31⁄32”) — max. 400 mm (15 3⁄4”) |
| Optional devices available | duplex Feeders
collapser folder |
Suitable for all types of corrugayed board, from E-flute to double wall;
High performance, production rates up to max. 50 partition sets/min (depending on partitions dimensions);
The PLC S7 system allows to save an elevated series of parameters on a hard disc, that simplifies and reduces drastically the time of changing format;

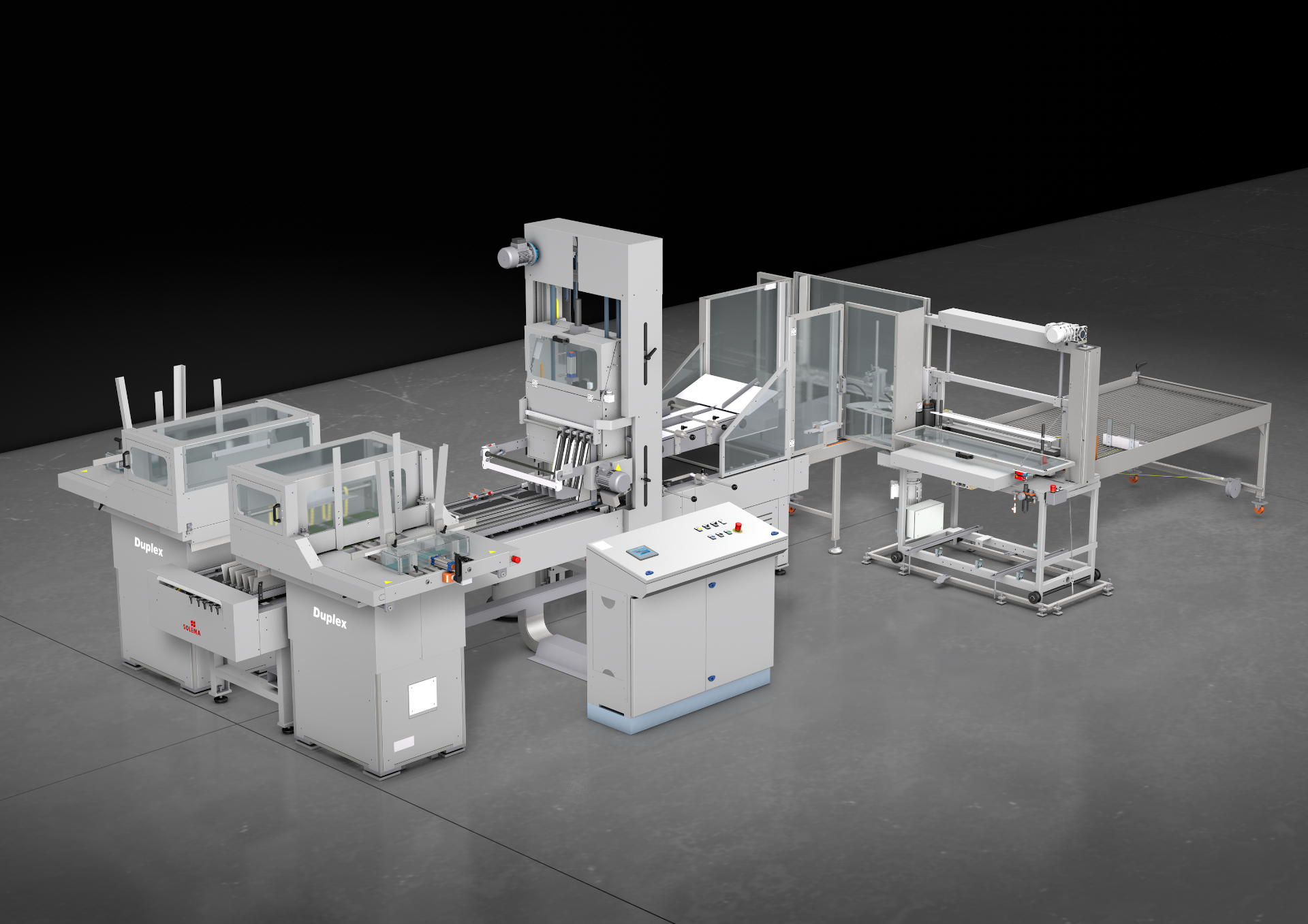

Fully automatic operation when equipped with following options:
– Duplex feeder for automatic feeding of long dividers in machine direction.
– Collapser that automatically ejects assembled partition sets in pre-counted bundles (number of choice) ready for tying.
