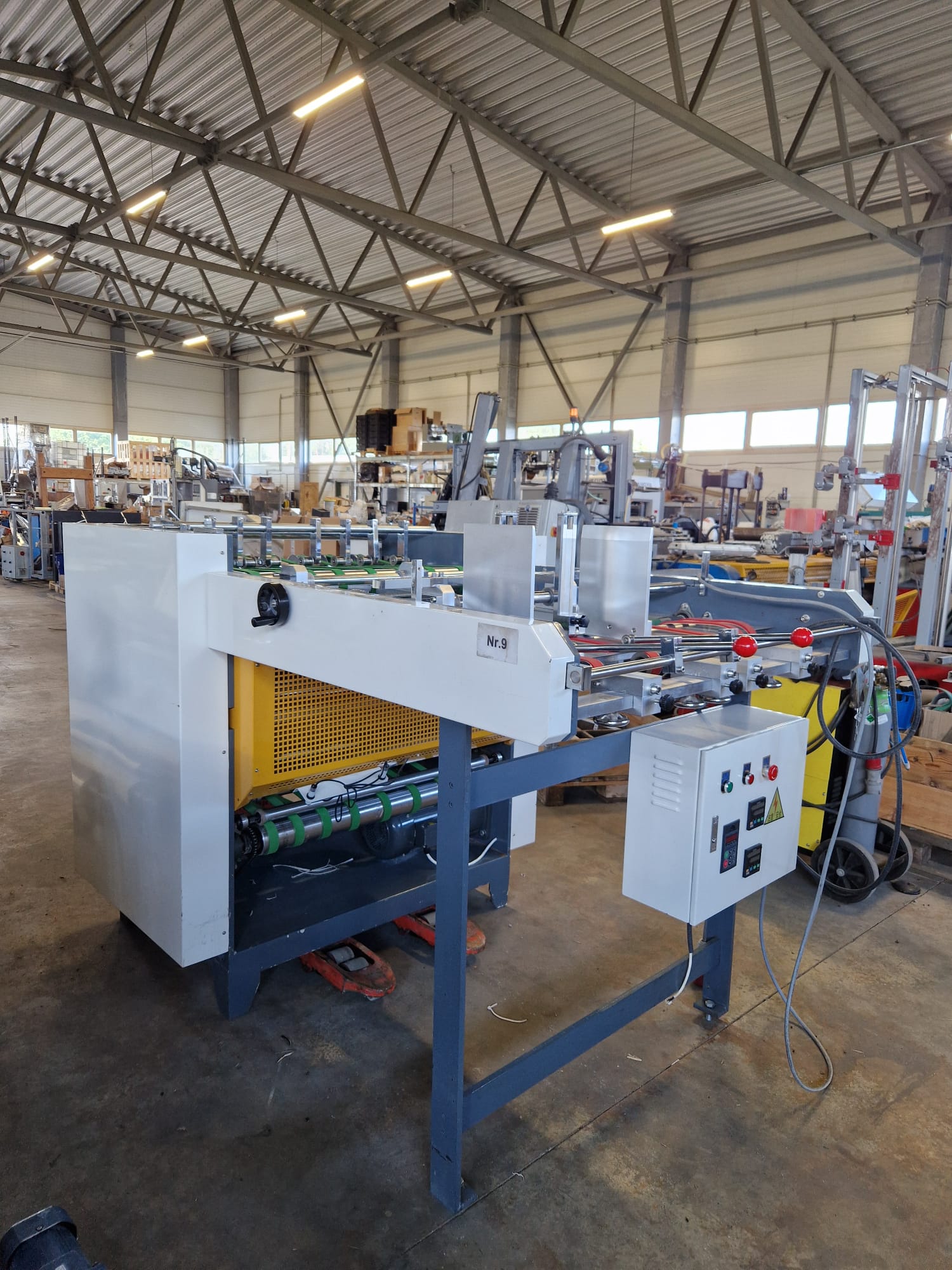

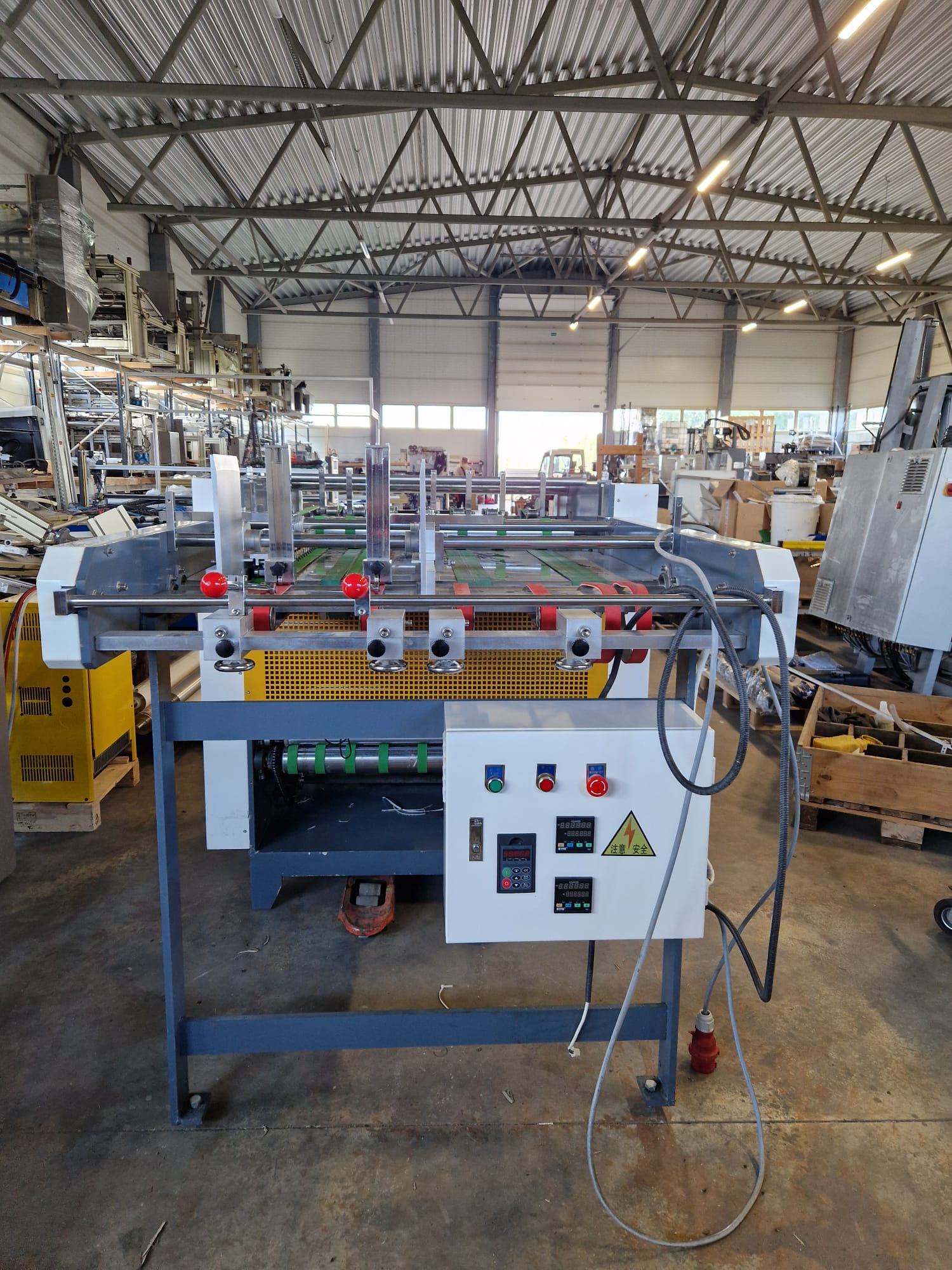

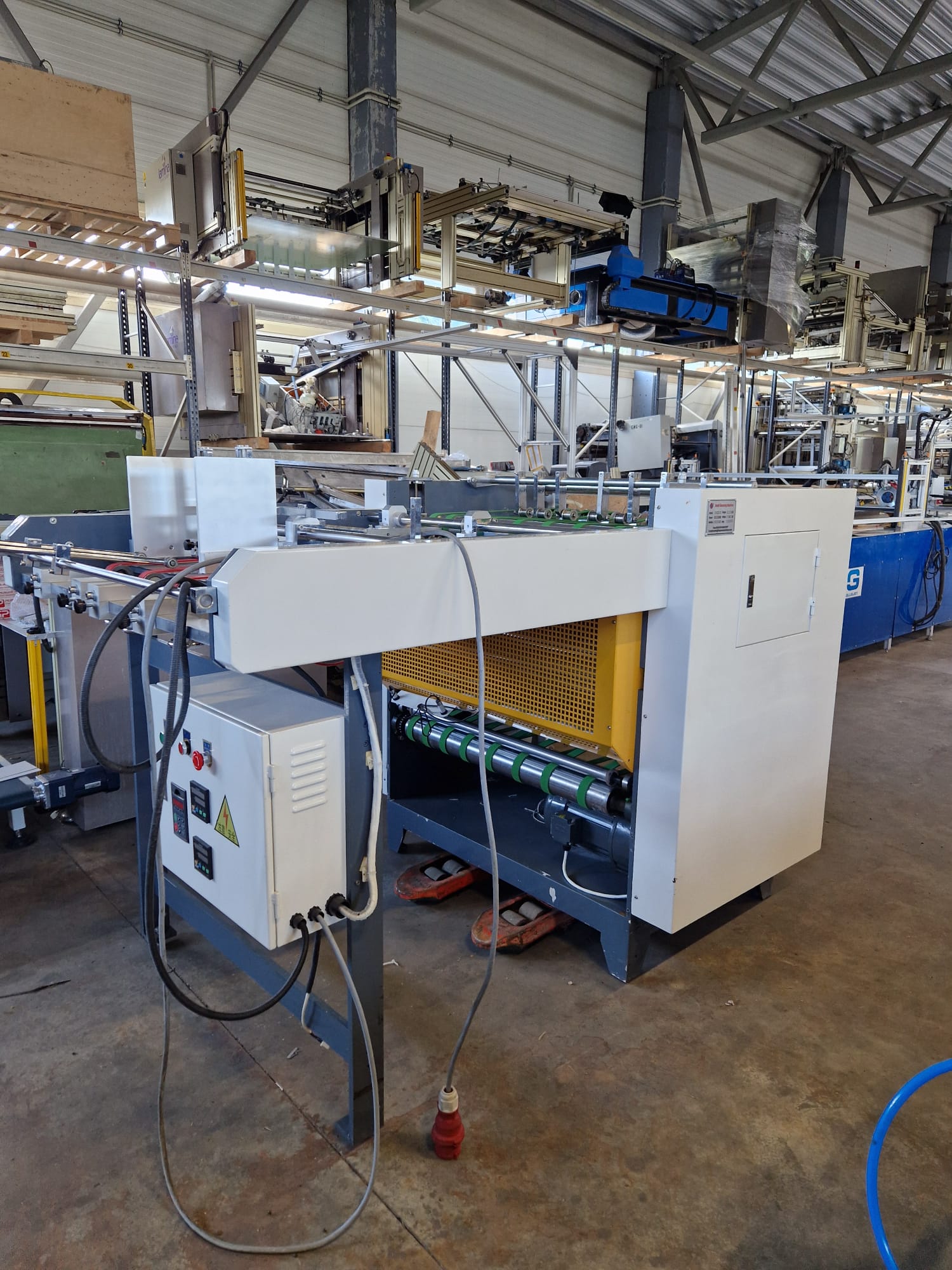

Automatic Grooving Machine

Width of working piece: Width 50-850mm
Length of working piece: Length110-550mm
Best Accuracy: ±0.05mm
Normal Error: ±0.1mm
Fastest Speed: 30-32m/min,
110-120pcs/min(work piece size 200x200mm)
Normal Speed: 20-25m/min,70-90pcs/min
Groove Angle: 80-140° adjustable
Thickness of working piece: 300gsm-3.0mm
Total Number of Groove: 9 pieces
Power: 3.0kw
Dimension: 2100x1400x1350mm
Machine Weight: 1480kg
