BOX WRAPPER-EL
SEMI-AUTOMATIC MACHINE TO PRODUCE WRAPPED RIGID BOXES MAX 12cm HIGH
Manual positioning of the glued paper on the last (paper gluing using a separate gluing machine).
Fully automatic coating/wrapping of the box and ejection of the finished product onto the collection surface.
Touch-screen display for automatic size change, setting parameters and memorizing the various work programs.

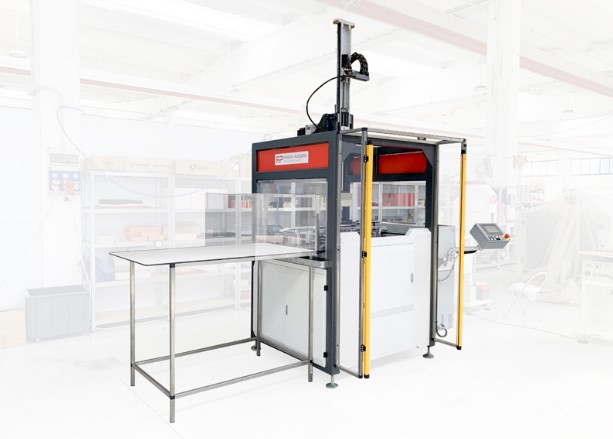

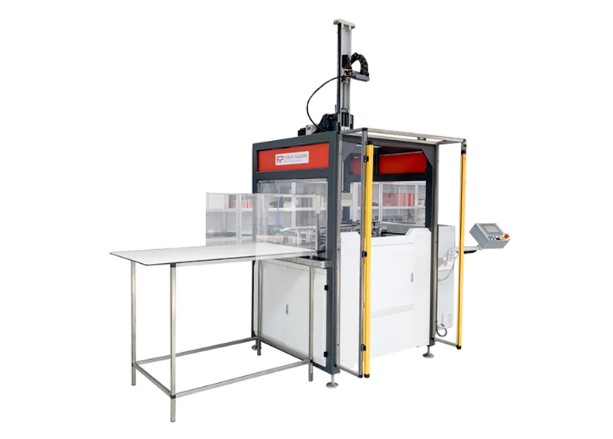

BOX WRAPPER-EL is a semi-automatic machine for producing high-quality wrapped rigid boxes up to 120 mm high. The operator manually positions the glued covering paper, while the machine automatically wraps the box and ejects the finished product. With touch-screen control, quick format changeover and production capacity of up to 300–350 boxes per hour, BOX WRAPPER-EL is an efficient solution for flexible rigid box production.
Box sizes:
— min. 80x80mm (internal)
— max. 400x400mm (external)
— height min. 20mm – max. 120mm
Paper thickness: 110 – 150gr./m²
Job sizes-change over: 5 min.
Mechanical speed: 500 cycles/hour
Production capacity: 300/350 wrapped boxes/hour
