AUTOMATIC LINE TO ASSEMBLE COLLAPSIBLE BOXES AND BOOK BOXES
Automatic line to assemble rigid boxes and collapsible boxes in 1 or 2 parts – Ideal to manufacture paper-coated luxury packages (even supplied with magnetic closure) as cases and gift boxes for wine, jewels, liqueurs, perfumes – High-capacity equipment running 40 cycles/minute (mechanical speed).

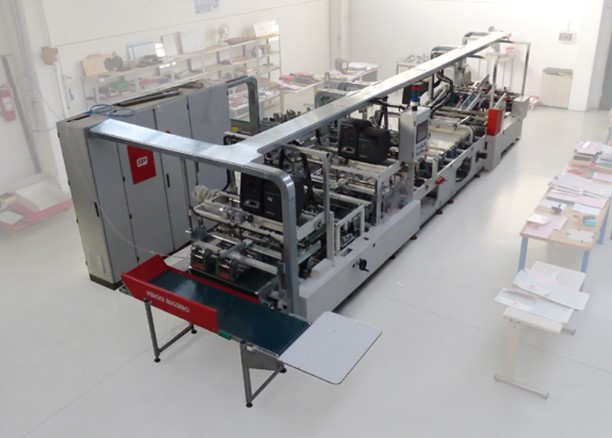

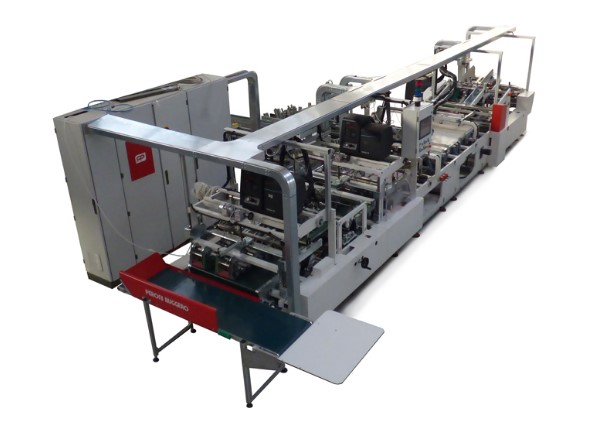

JOLLY BOX 40 is an automatic machine designed for the assembly of rigid and collapsible boxes. It supports the precise positioning and application of wrapped box components, providing a reliable solution for efficient production of premium rigid packaging. The machine is part of Peroni Ruggero’s range of equipment for luxury rigid and collapsible box manufacturing.
Materials to process:
— box board flats already paper-coated (grooved and with magnets)
— with thickness min 1.2 mm up to max 2 mm
Coated flat size range:
min. 400 mm x 220 mm
max 840 mm x 520 mm
— Rigid tray measuring min. 140 mm x 220 mm – max 360 mm x 520 mm
Height min 40 mm – max 100 mm
— Collapsible tray already paper-coated in 1 or 2 parts
measuring min 400 mm x 220 mm – max 840 mm x 520 mm
Ready box size range:
for box cover min 140 mm x 200 mm – max 360 mm x 520 mm
Height 40 mm up to 100 mm
for collapsible boxes in one part min 120 mm x 140 mm max 360 mm x 440 mm
Height 40 mm up to 130 mm
for collapsible boxes in two parts min 140 mm x 220 mm max 360 mm x 520 mm
Height 40 mm up to 130 mm
Gluing: by hot-melt employing Nr 3 glue tanks and Nr. 14 glue guns
Production capacity: up to max 35 cycles/minute for all kinds of boxes
Electrical power required: 20 Kw (glue heaters not considered)
Compressed air required: 300 Nl/minute
Overall dimensions: 7000 mm x 1700 mm x 2100 mm
