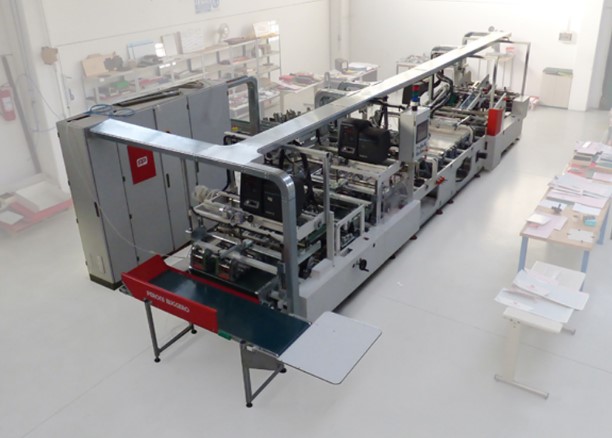

JOLLY-BOX-EL is an automatic line designed for applying wrapped rigid boxes onto turned-edge cardboard flats and assembling collapsible boxes with side wings. It combines high production capacity with flexible format changeover, delivering up to 900 book boxes/hour or 600 collapsible boxes/hour, depending on the product configuration. The line provides an efficient solution for industrial production of rigid and collapsible packaging.
Materials to process:

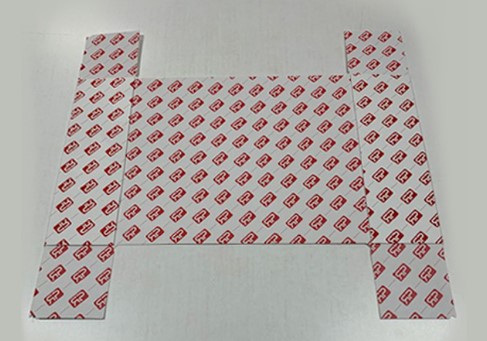

— box board flats already paper-coated (grooved and with magnets)
— with thickness min 1.2 mm up to max 2 mm
Coated flat size range:
min. 400 mm x 220 mm
max 840 mm x 520 mm
— Rigid tray measuring min. 140 mm x 220 mm – max 360 mm x 520 mm
Height min 40 mm – max 100 mm

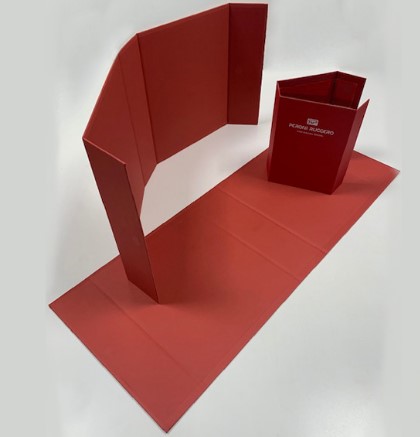

— Collapsible tray already paper-coated in 1 or 2 parts
measuring min 400 mm x 220 mm – max 840 mm x 520 mm
Ready box size range:

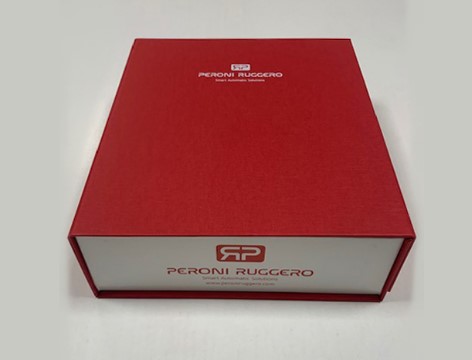

for box cover min 140 mm x 200 mm – max 360 mm x 520 mm
Height 40 mm up to 100 mm

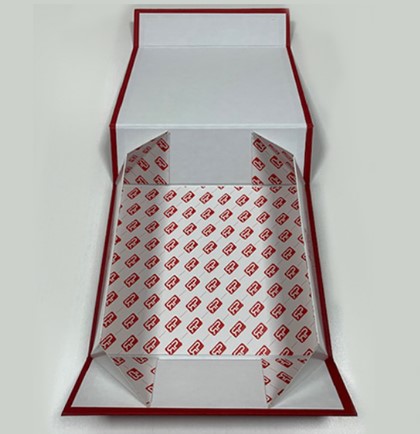

for collapsible boxes in one part min 120 mm x 140 mm max 360 mm x 440 mm
Height 40 mm up to 130 mm
for collapsible boxes in two parts min 140 mm x 220 mm max 360 mm x 520 mm
Height 40 mm up to 130 mm
Gluing: by hot-melt employing Nr 3 glue tanks and Nr. 14 glue guns
Production capacity: up to max 35 cycles/minute for all kinds of boxes
Electrical power required: 20 Kw (glue heaters not considered)
Compressed air required: 300 Nl/minute
Overall dimensions: 7000 mm x 1700 mm x 2100 mm
