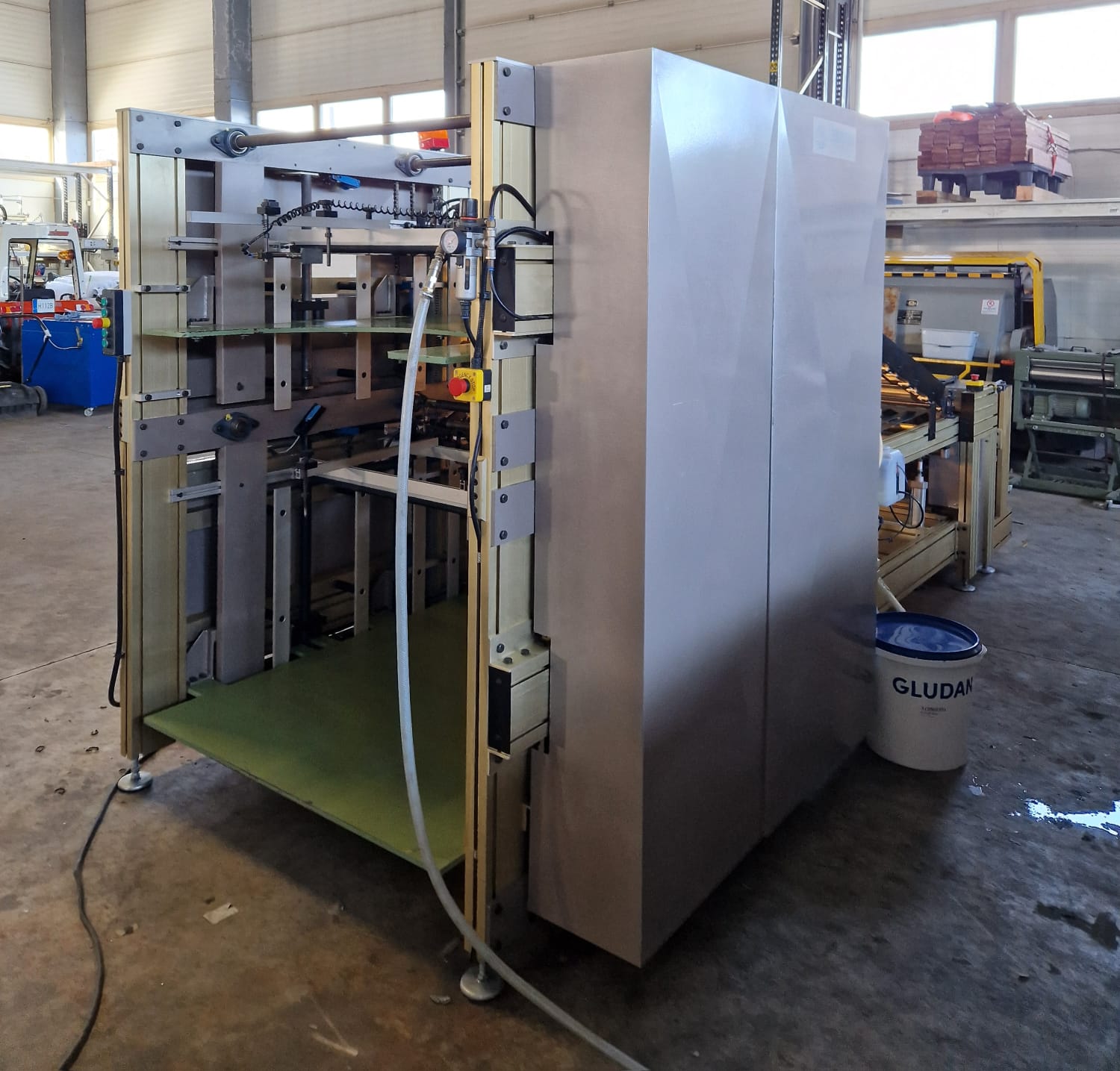

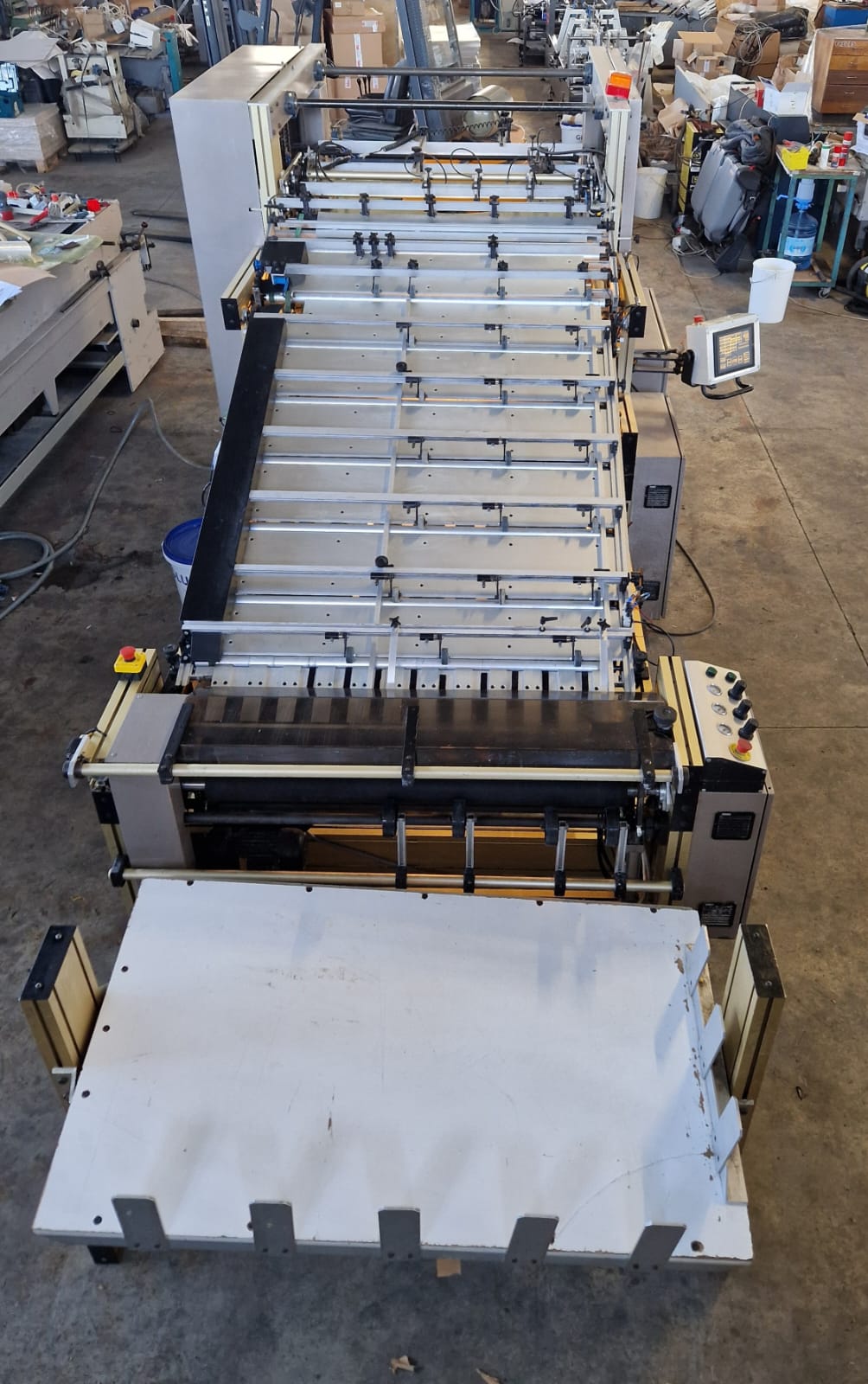

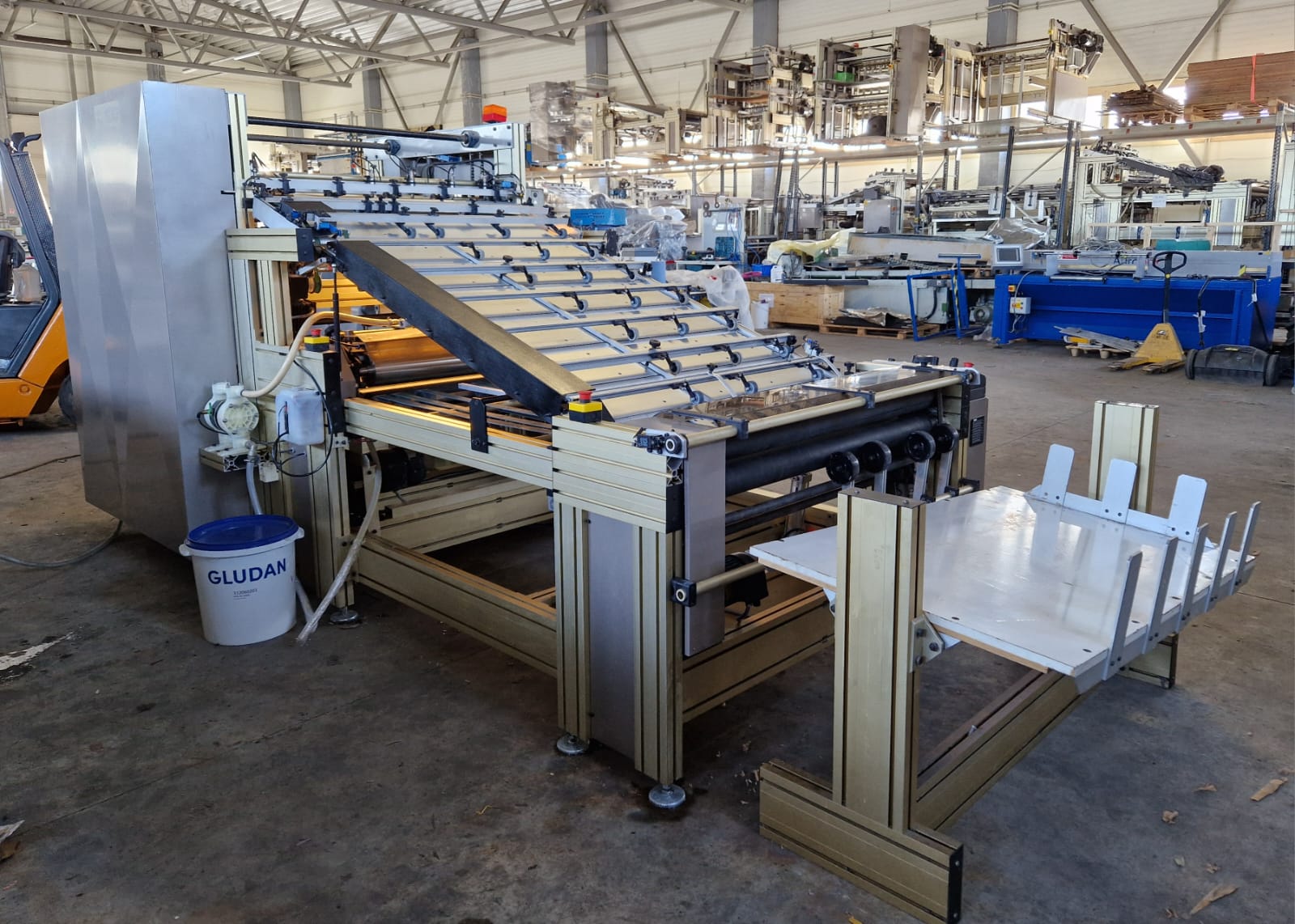

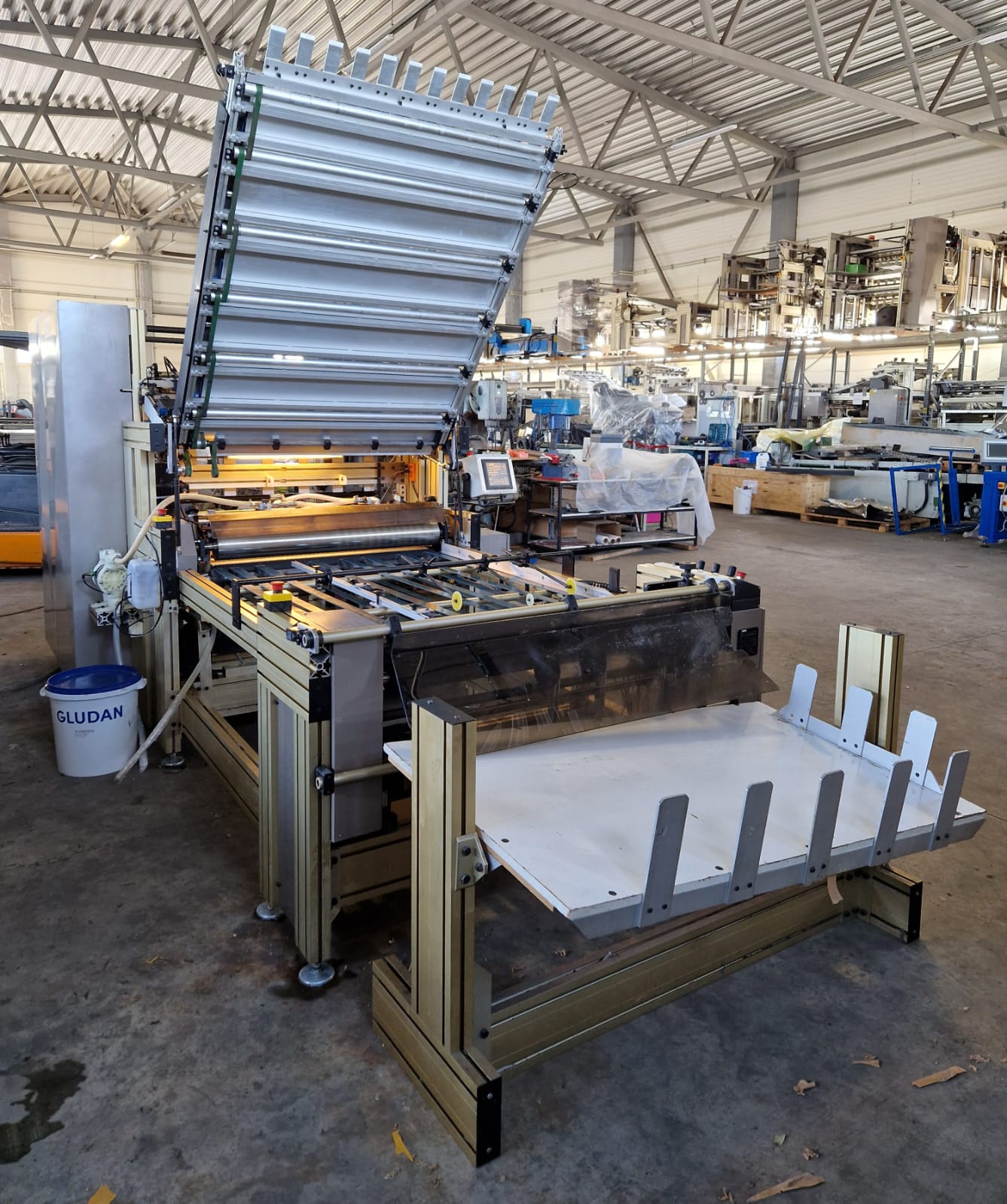

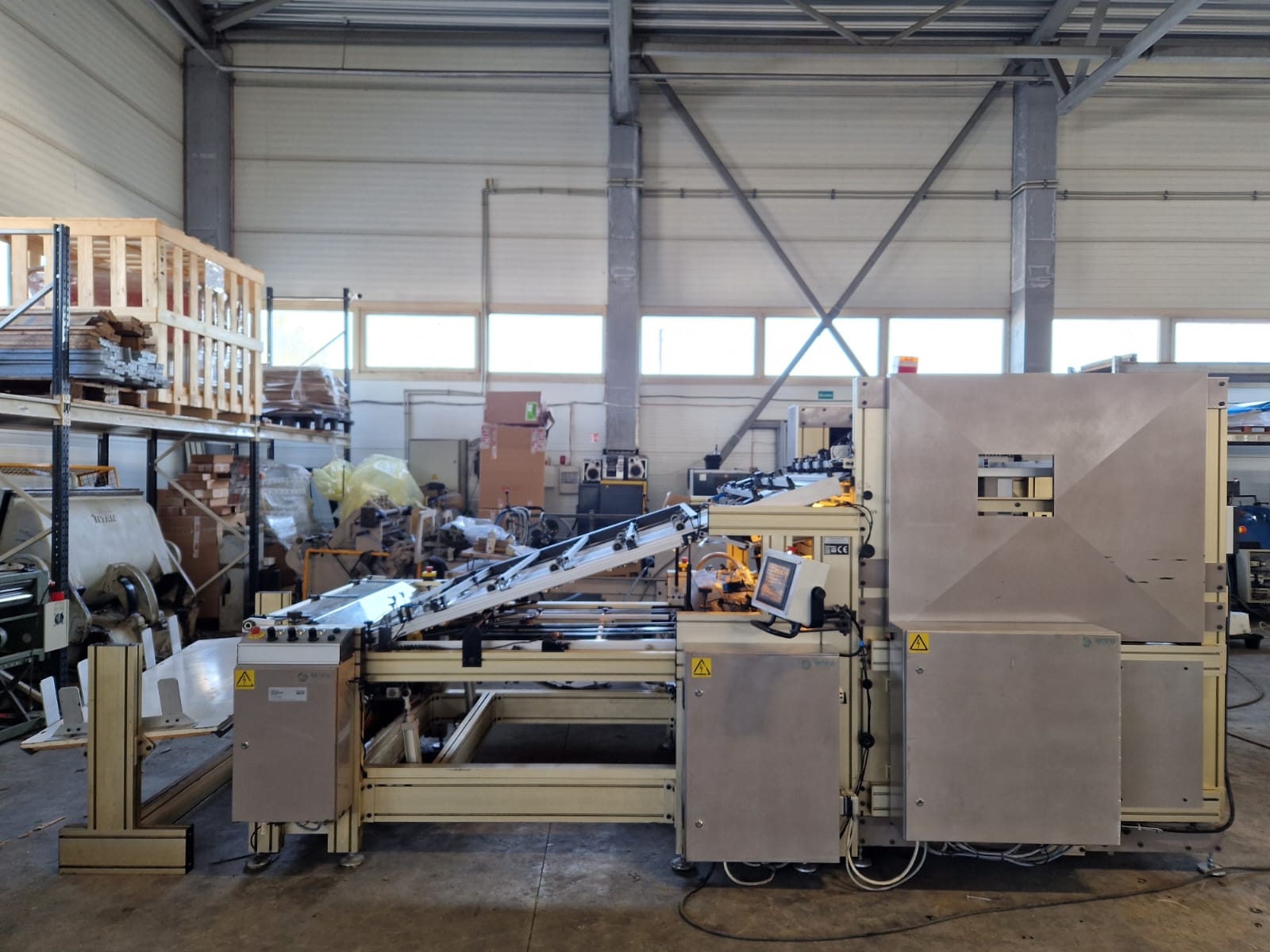

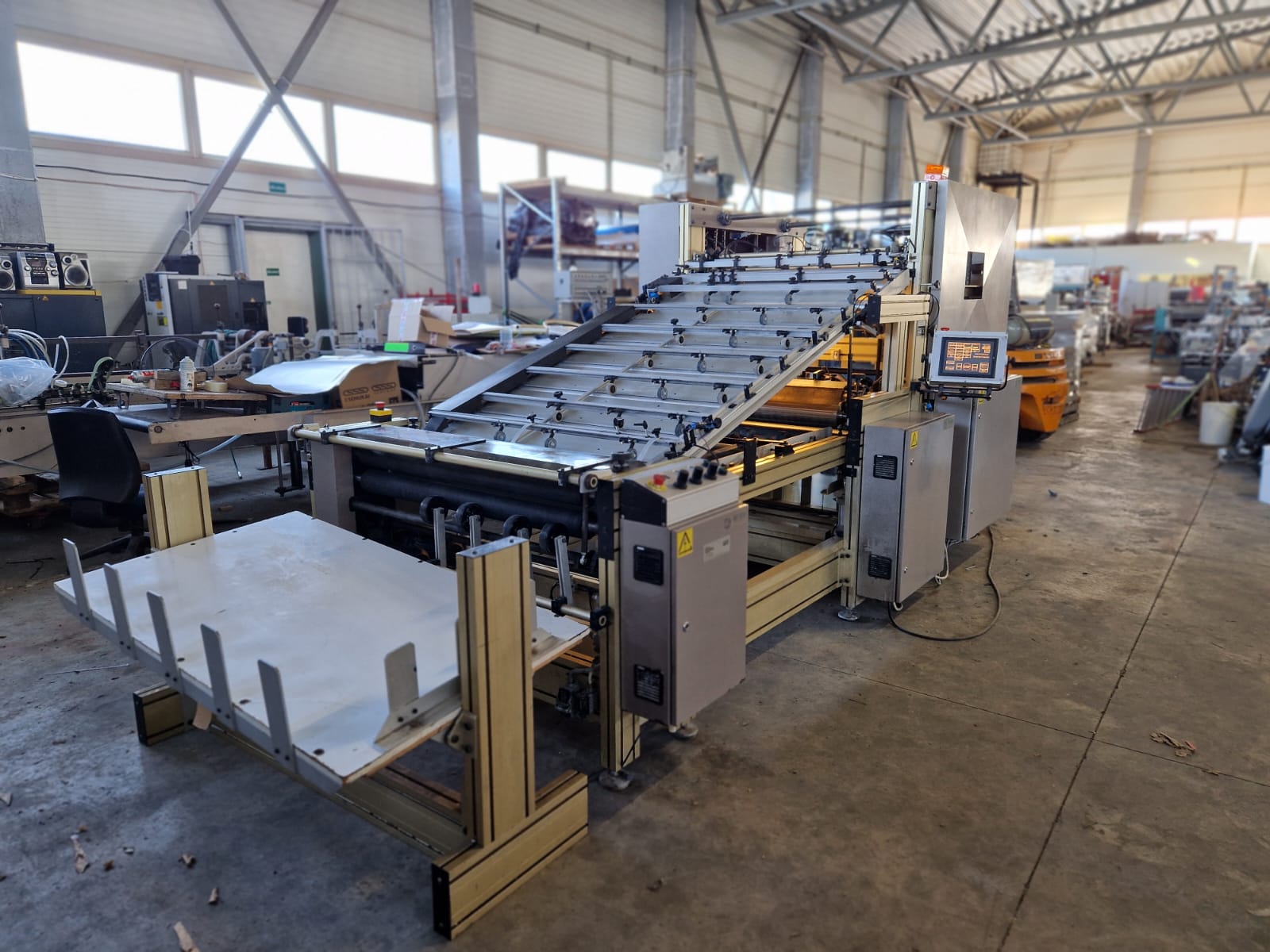

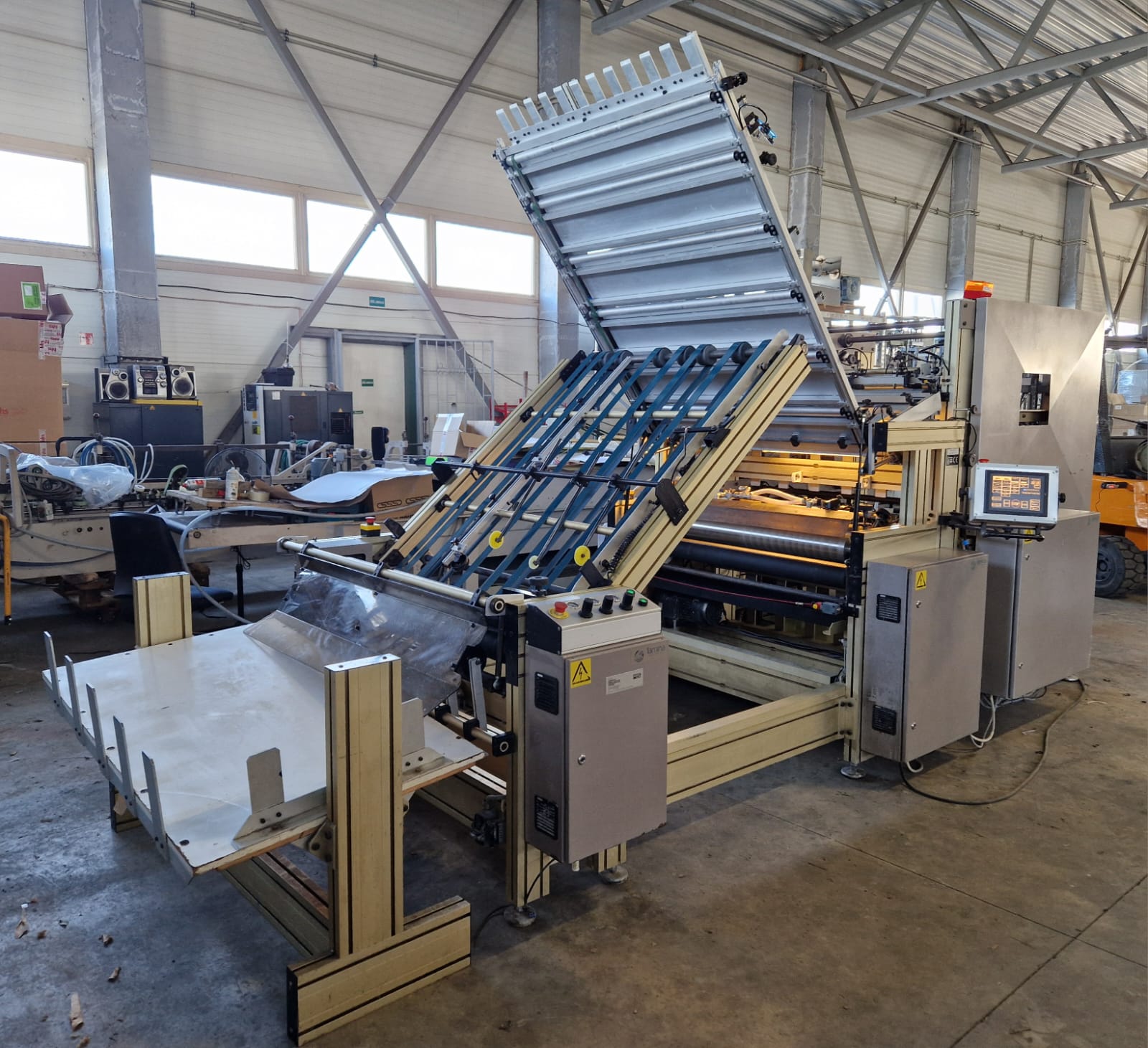

Automatic substrate feeder with continuous sheet feeding

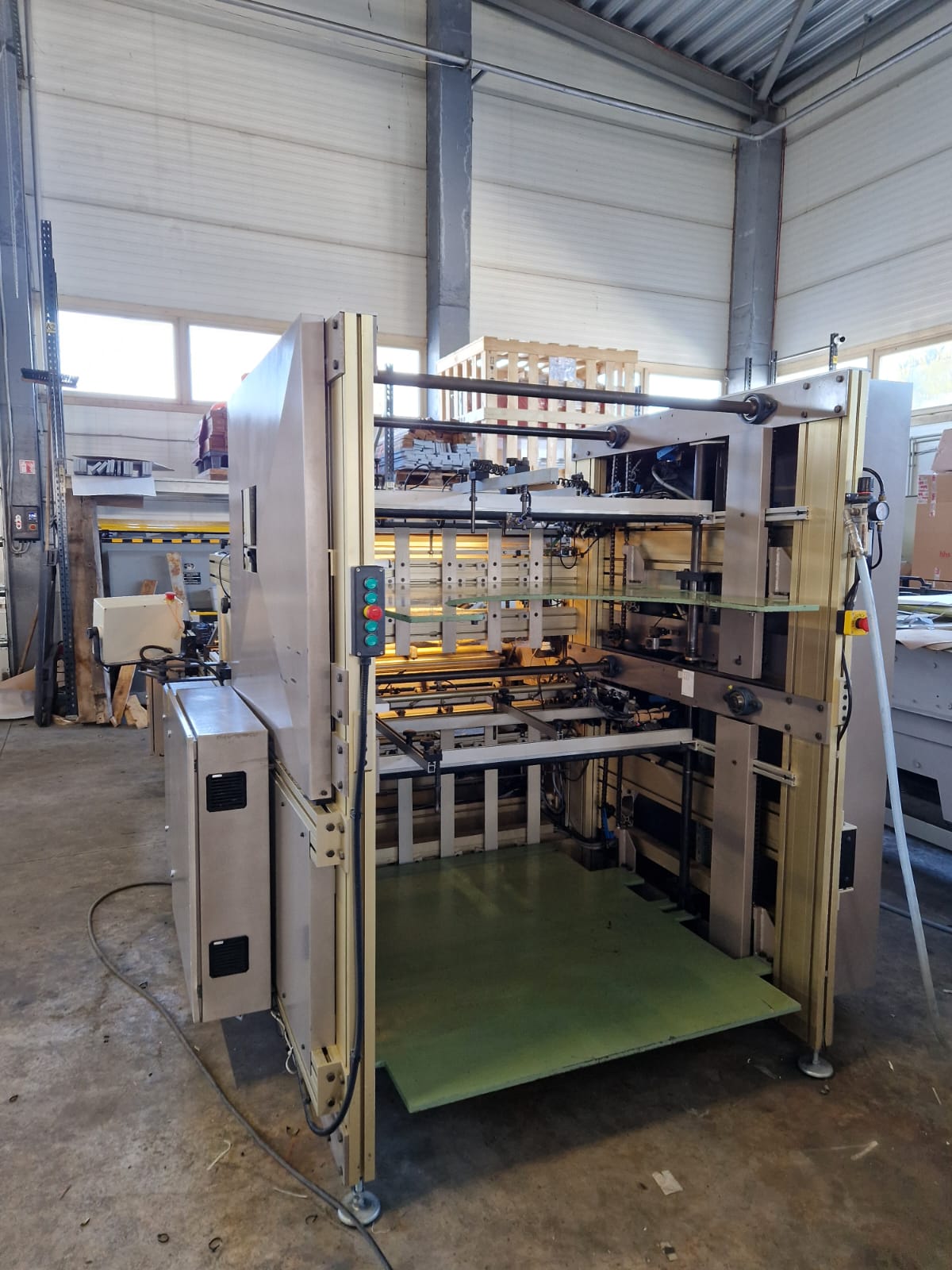

Automatic top sheet feeder
The machine is built on a rigid frame structure made of anodized aluminum profiles.
Width (with platforms) – 3.7 m, length – 10.5 m, height 2.9 m
| Technical Data | Technical Description |
|---|---|
| Max. sheet size: | width: 1100 mm length: 1600 mm |
| Min. sheet size: | width: 200 mm length: 350 mm |
| Top sheet: | 130 – 450 gm / m2; |
| Glue: | PVA type or as specified |
| Bottom sheet: | from 250 g / m2, thickness: 0.6 – 10 mm |
| Power supply options PA and CI: | 400 VAC 3-phase + N + G 50 Hz 6KW |
