Lamina SA

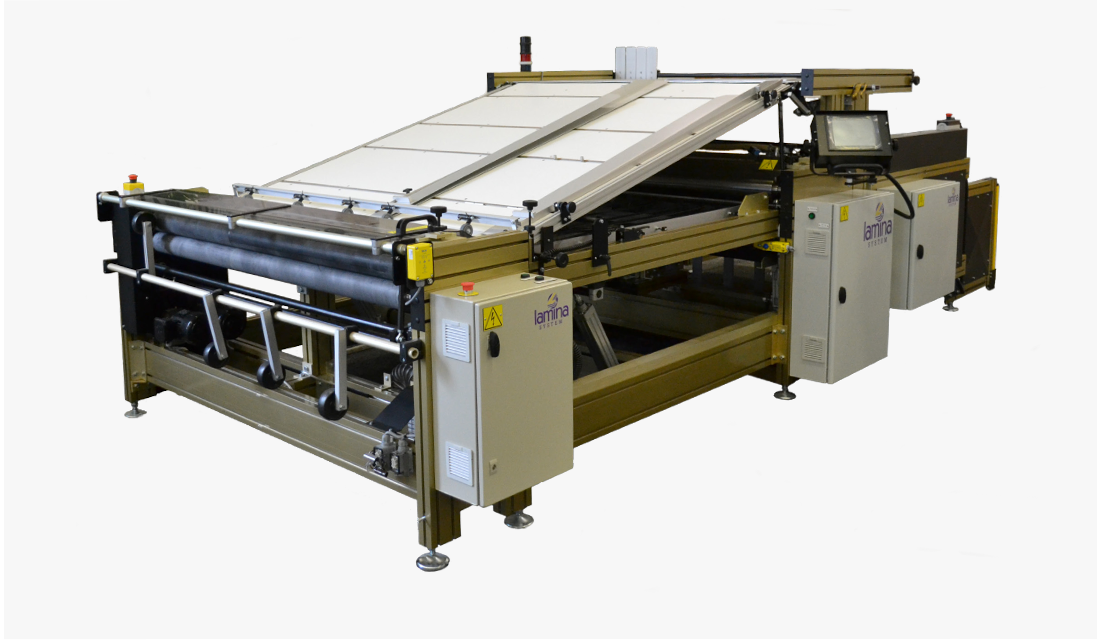

The Lamina SA is a sheet-to-sheet semi-automatic laminating/mounting machine. It has an automatic suction cup feeder for bottom sheets and a hand-fed operation for top sheets. The machine is very operator-friendly, and because of its modular construction, it allows for easy upgrading to fully automatic with little or no disruption.

11,00 €

Download Brochure (PDF)
REQUEST INQUIRY
  • LOW SPEED: Up to 1500 sheets/hour
  • EDGE TO EDGE: Consistant registration accuracy up to 0,2mm
  • LOW CAPACITY: Manual Top feeder - 800mm Bottom feeder
  • SEMI-AUTOMATIC FEEDER: Manual top and suction cup picker for bottom

The Lamina SA is a sheet to sheet semi automatic laminating/mounting machine. It has an automatic suction cup feeder for bottom sheets and a hand fed operation for top sheets.

The machine is very operator friendly, and because of the modular construction it allows an upgrading to fully automatic with little or no disruption.
A varying amount of top and bottom sheets can be handled in the machine, and because of its compact size the machine is very easy to integrate in your working area.
A number of options such as Single Face Feeder, Down Stacker, Pressure Belt etc. can be added whenever it is required.



LAMINA SEMI-AUTOMATIC LAMINATING MACHINE TYPE 1110-1620 SA, 800
A Lamina Model 1110 semi-sheet laminator – For sheet-to-sheet laminating of paper and cardboard-to-cardboard, solid and corrugated.
The machine features a modular construction which combines a rigid framework with modern anodized aluminium profiles resulting in a heavy-duty, yet attractive unit that will give many years of dependable service. Set up and changeover are accomplished quickly and easily from the operator side without the use of tools. A combination of mechanical and photocell controls results in consistent registration accuracy of less than +/- 0,5 mm when proper materials and conditions exist.

For automatic feeding of the bottom sheet. Suction cups pick up the top sheet from the stack and transfer it to the precision gluing unit. The feeder is designed to handle materials from 250 gm/m2 to 10 mm (0,39) 1 pts = 28,25 g/m2 corrugated from  0,6-10 mm (0,016 – 0,39).

The feeder is designed to handle materials 800 mm (32)
Precision gluing unit
The gluing units for accurate application of cold PVA glue to the upper surface of the substrates are equipped with automatic glue dispensers directly sonnected to the glue container. The film thickness of the glue is automatically kept under control irrespective of the sheet (board) thickness. During machine standstill the rotation speed of the rollers is reduced to a low idling speed. the precision gluing unit can be made fully accessible for easy cleaning by vertically swinging the top and bottom sheet conveyors up and out of the way.

In the automatic laminating station, the top and bottom sheets are automatically controlled by the registration system. the sheets are registered automatically at the lead as well as at the operator side, resulting in accuracy levels less than +/- 0,5 mm. Photocells prevent the lamination process unless both sheets are properly positioned.
