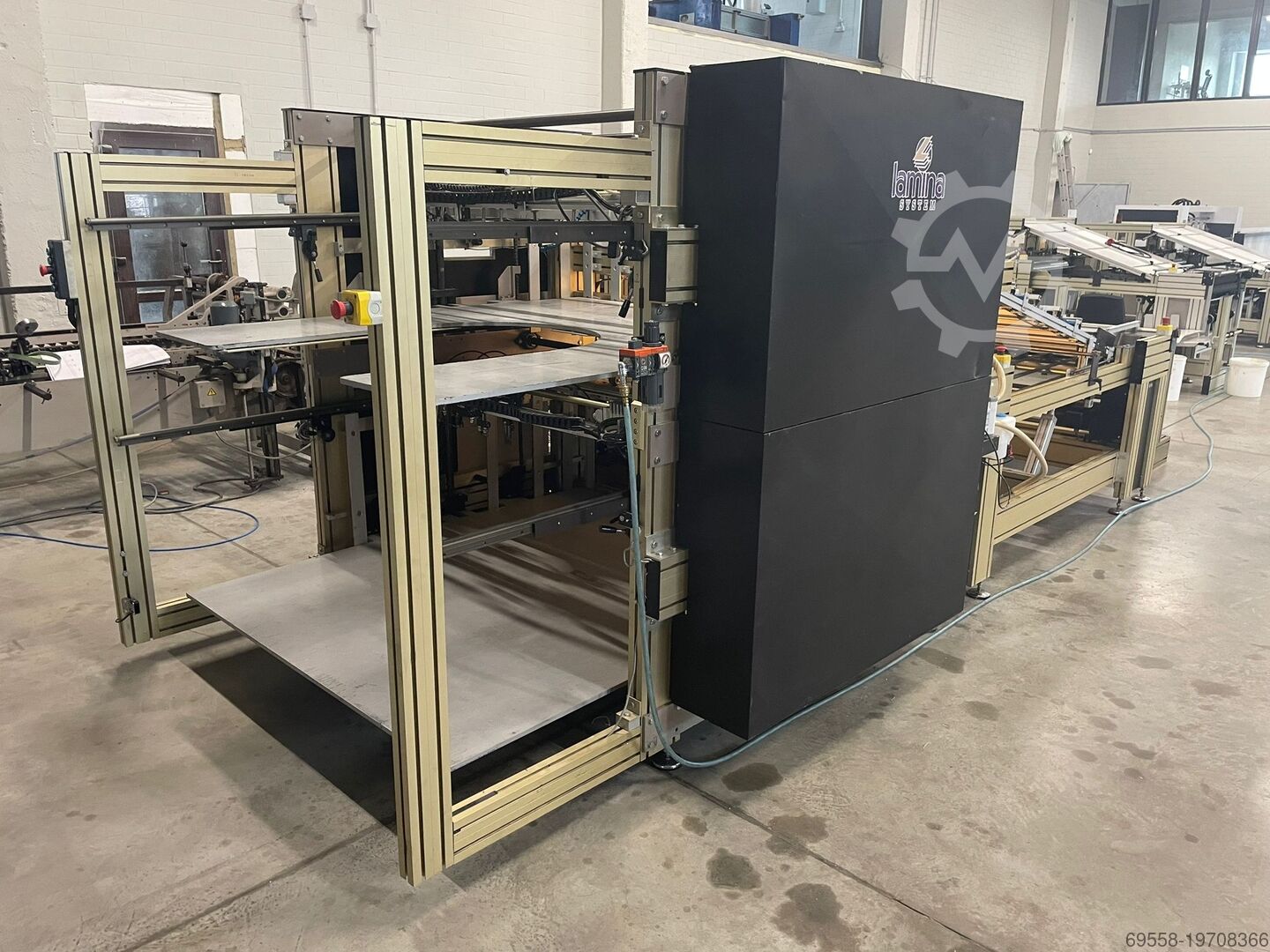

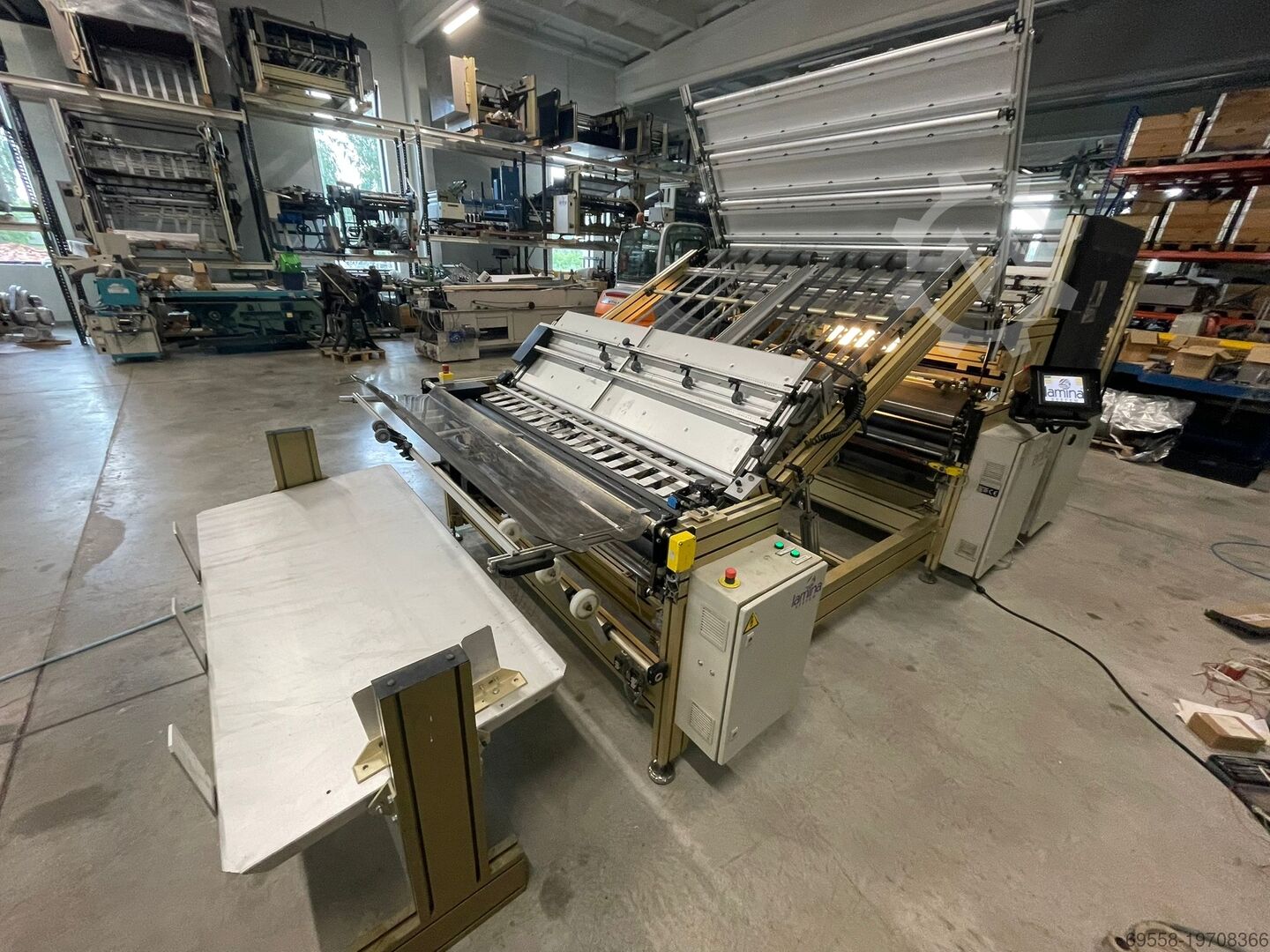

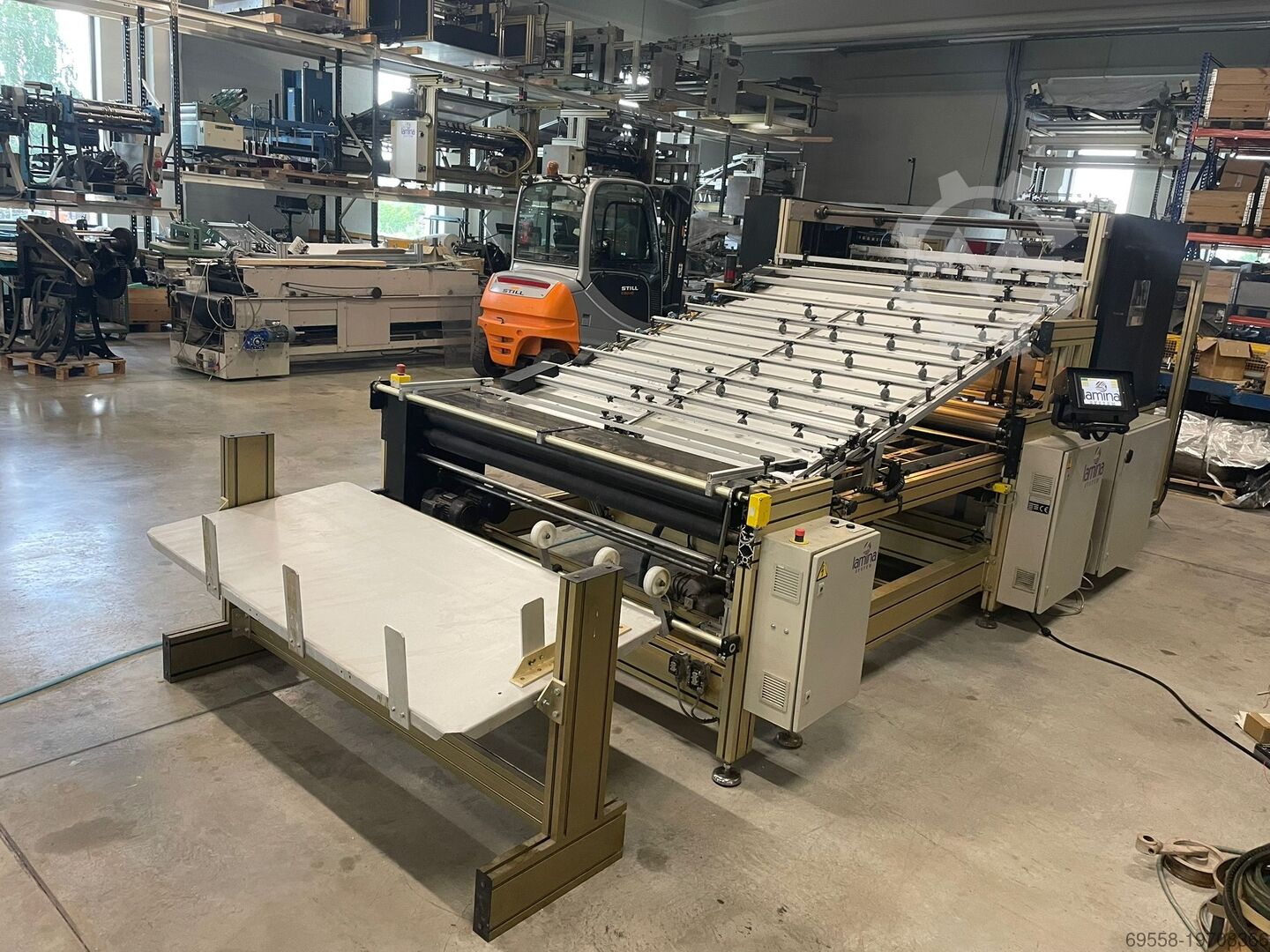

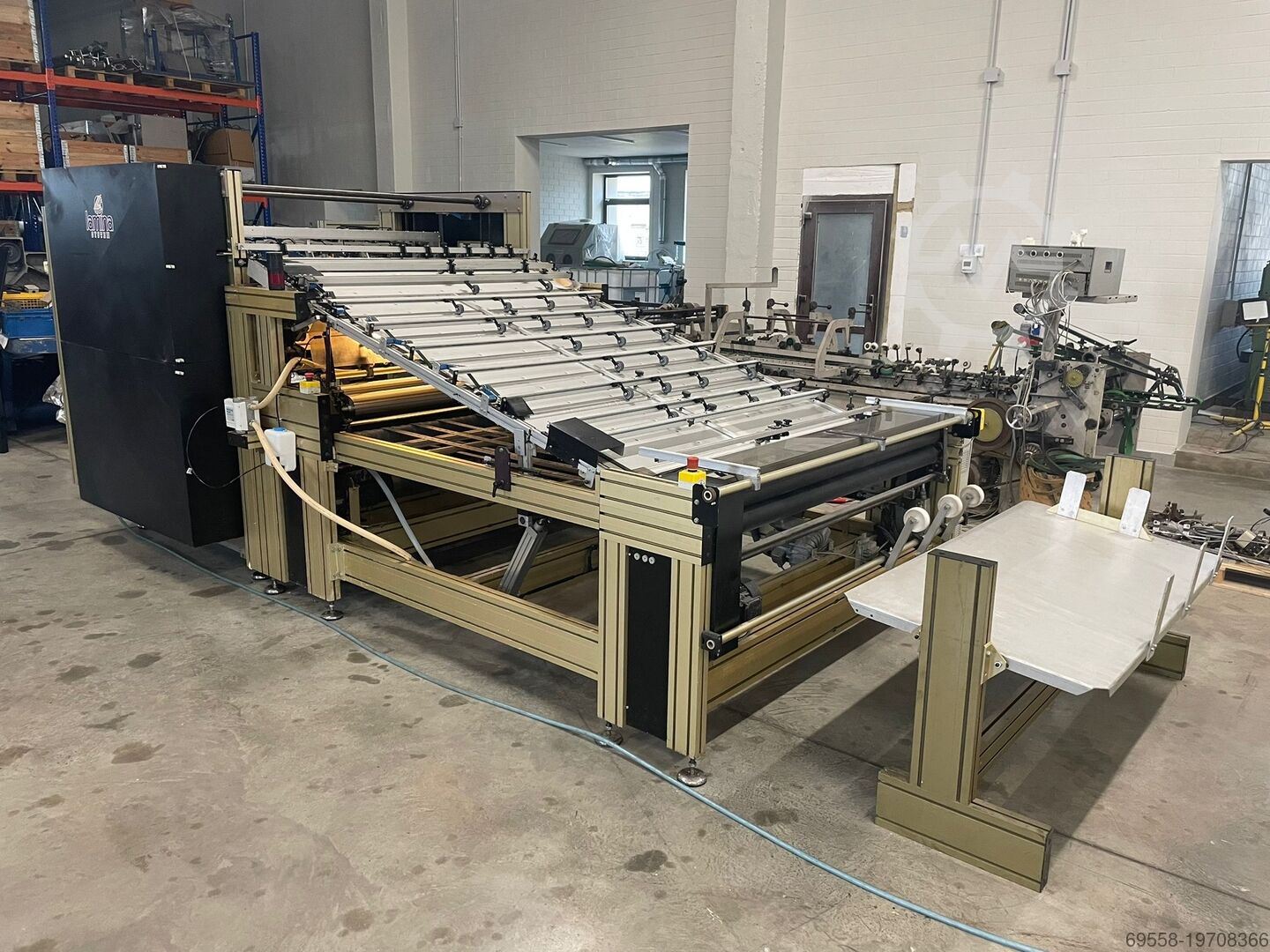

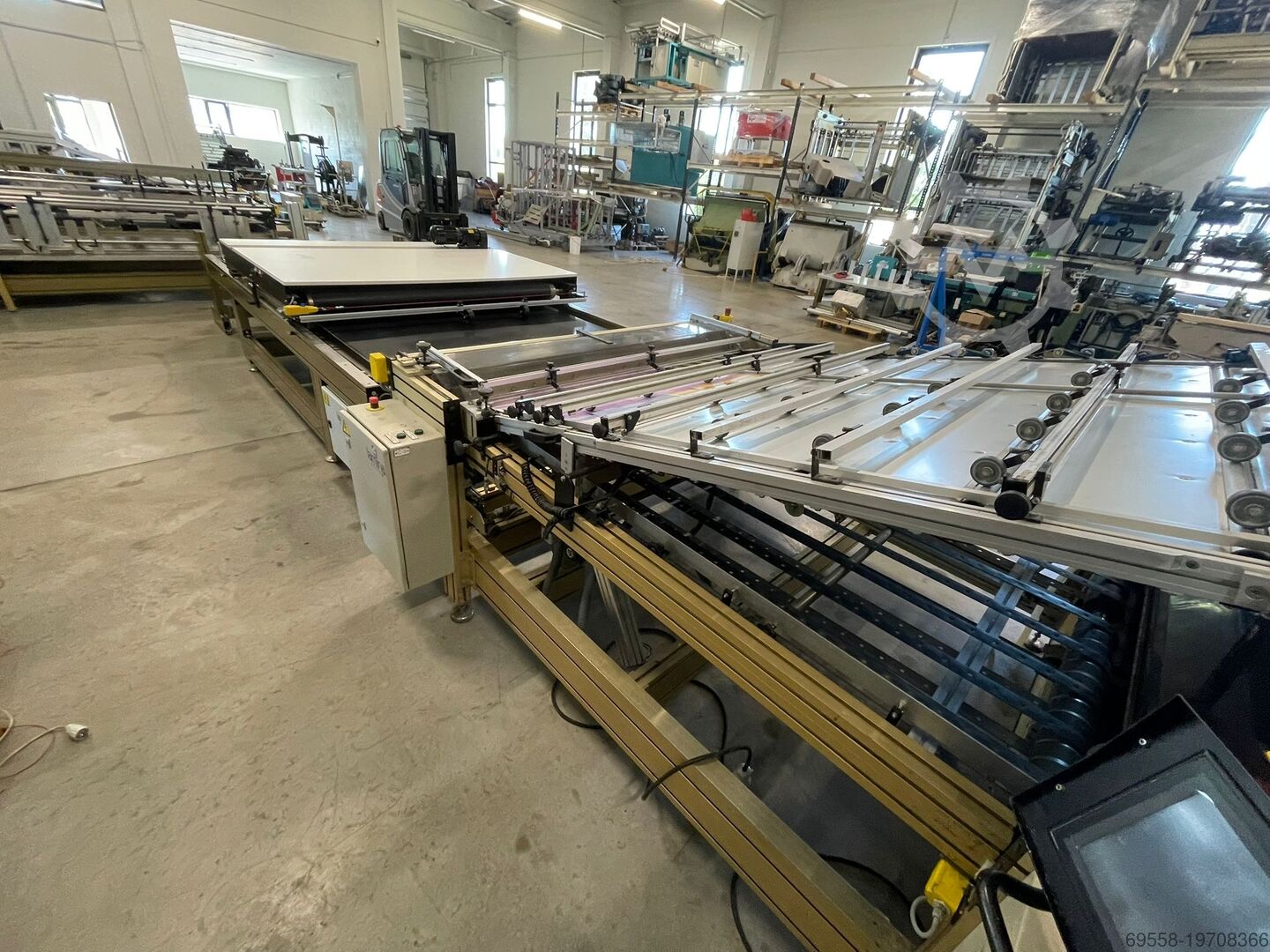

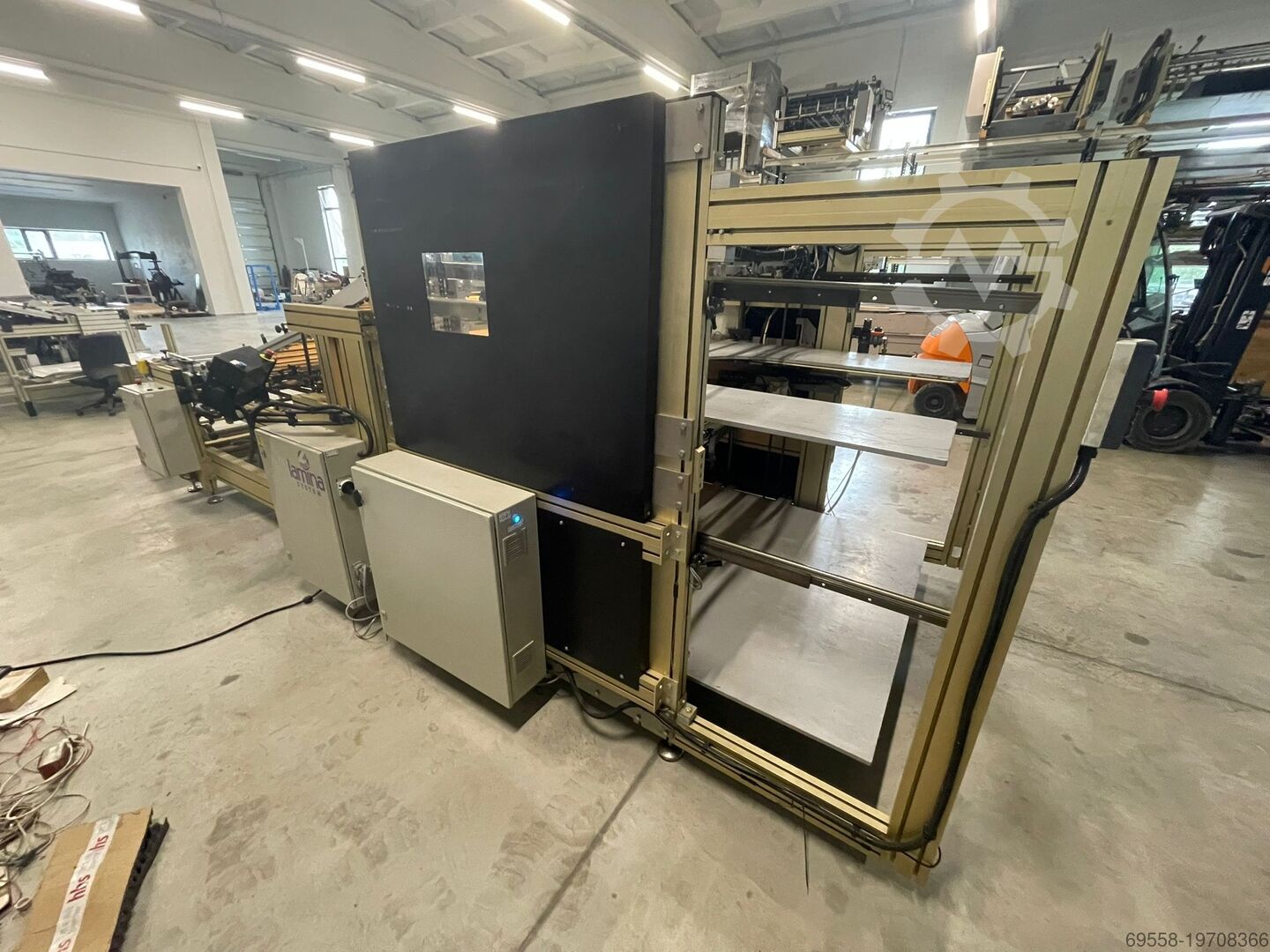

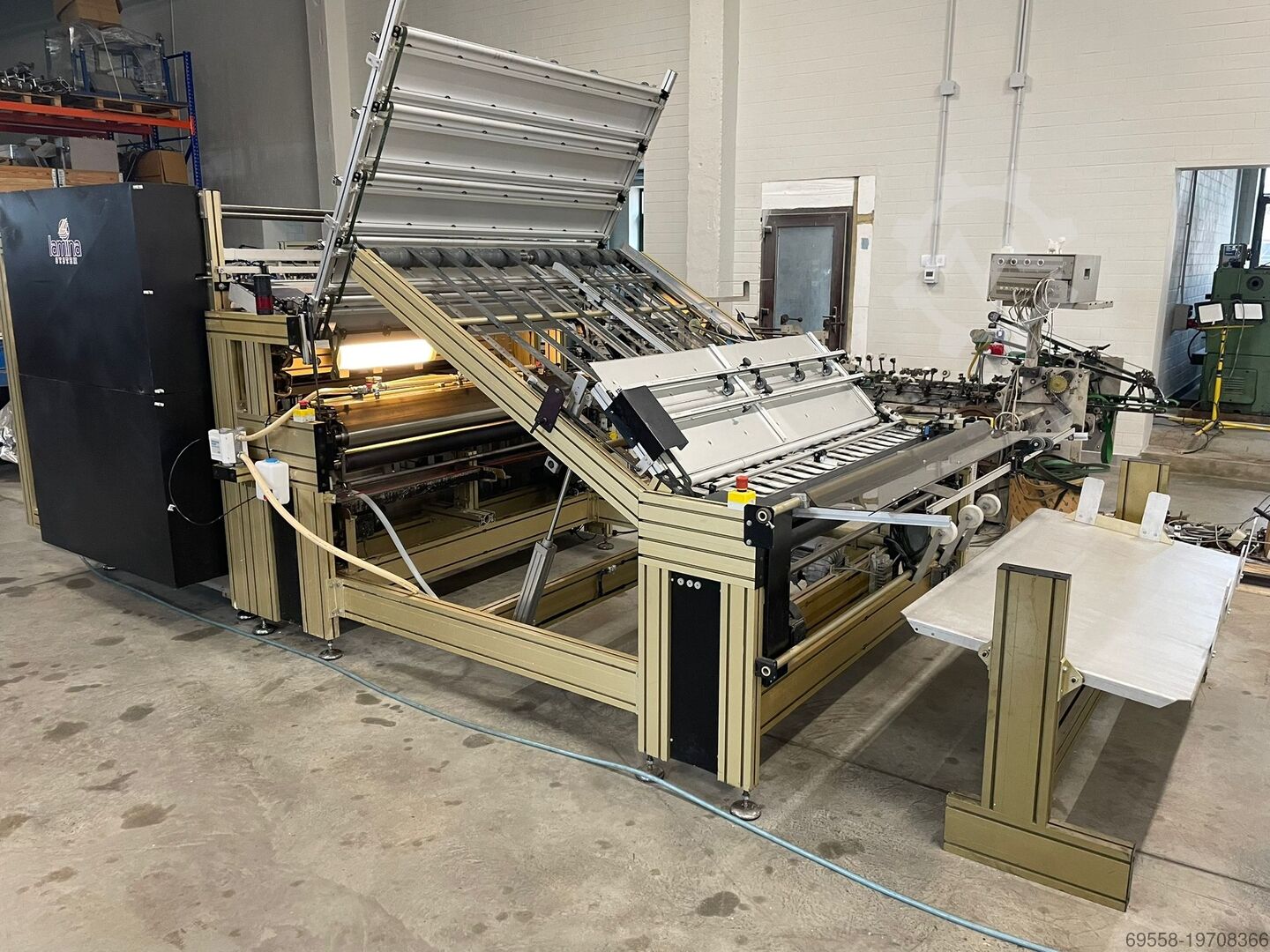

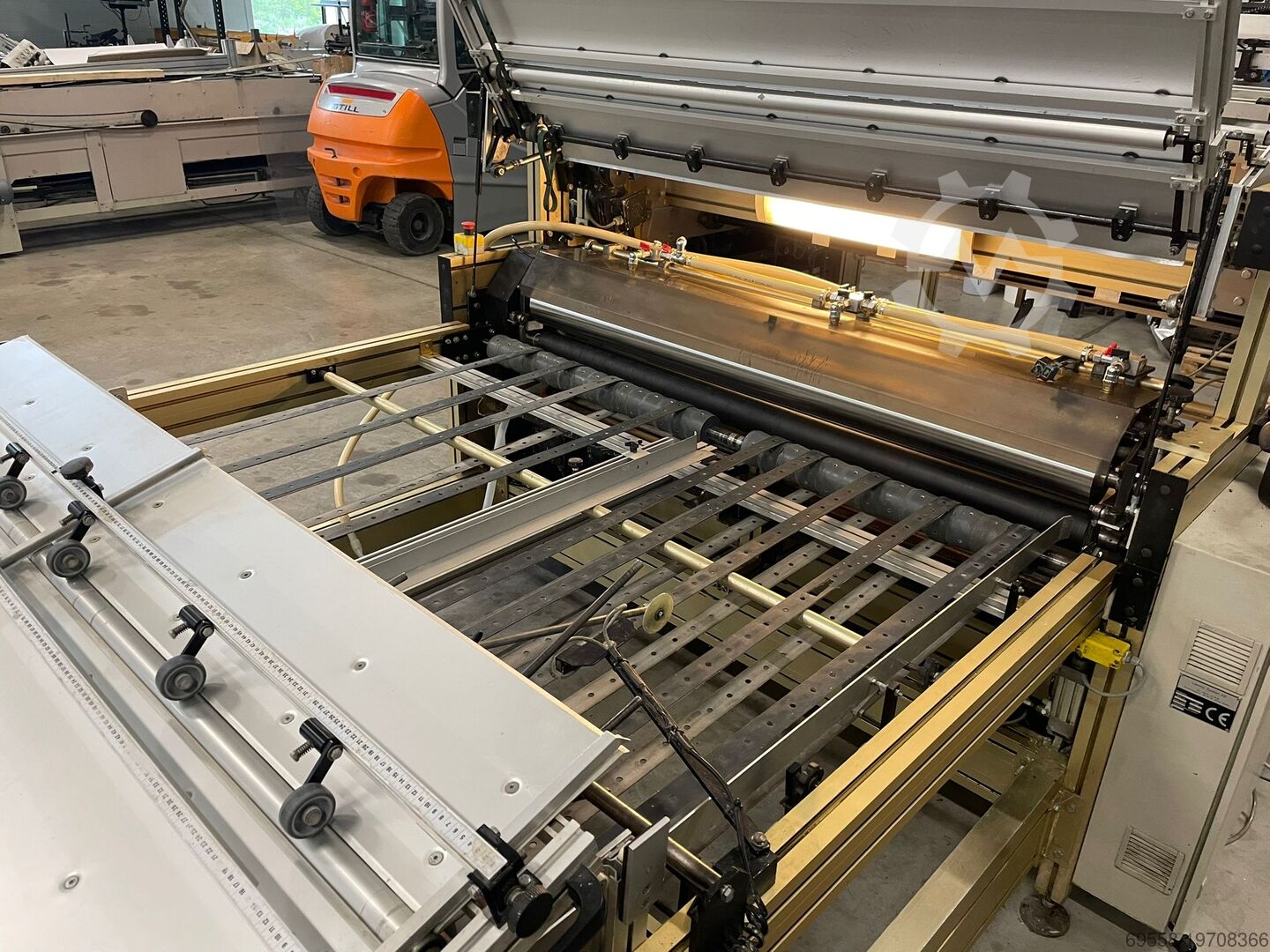

The Lamina FA Blackline 1620BL is a highly accurate, high speed sheet-to-sheet fully automatic laminating/mounting
machine. The machine can handle most of the existing materials in the market.
The modular construction allows easy upgrading and maintainance resulting in a machine that lasts for many years.
11,00 €
Max. sheet size:
width: 1600 mm
length: 2000 mm
Min. sheet size:
width: 350 mm
length: 350 mm

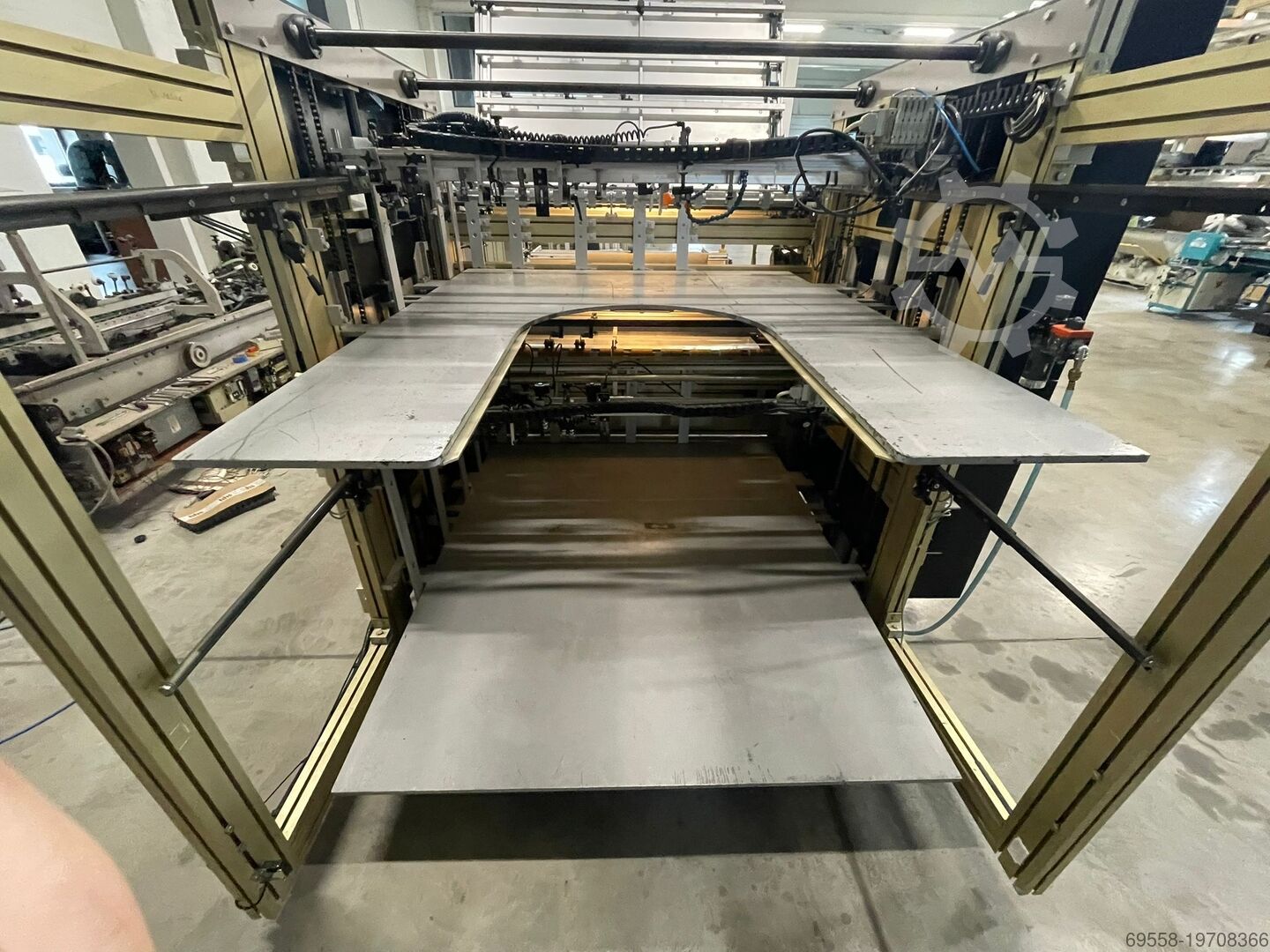

Feeder Capacity:
Top feeder: 500 mm (20”)
Bottom feeder: 800 mm (32”)
Top Sheet:
130 to 450 g/m2
1 pts = 28,25 g/m2
Bottom Sheet:
From 250 g/m2 to 10 mm (0,39”) 1 pts = 28,25 g/m2
corrugated from 0,6 – 10 mm (0,016” – 0,39”)
Air Requirements:
6 bar; 80 psi; 34 CFM, Approximately 500 L/min

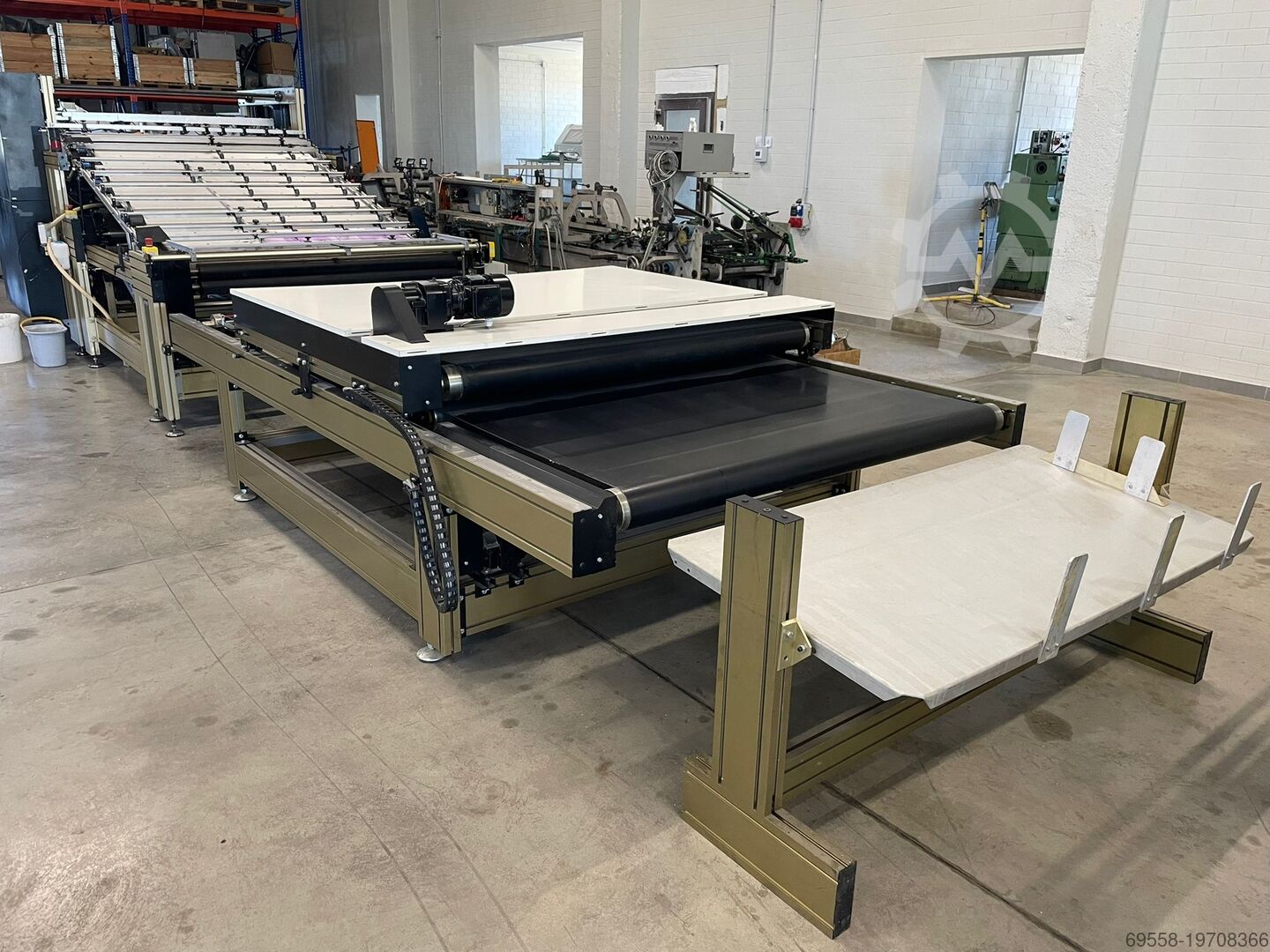

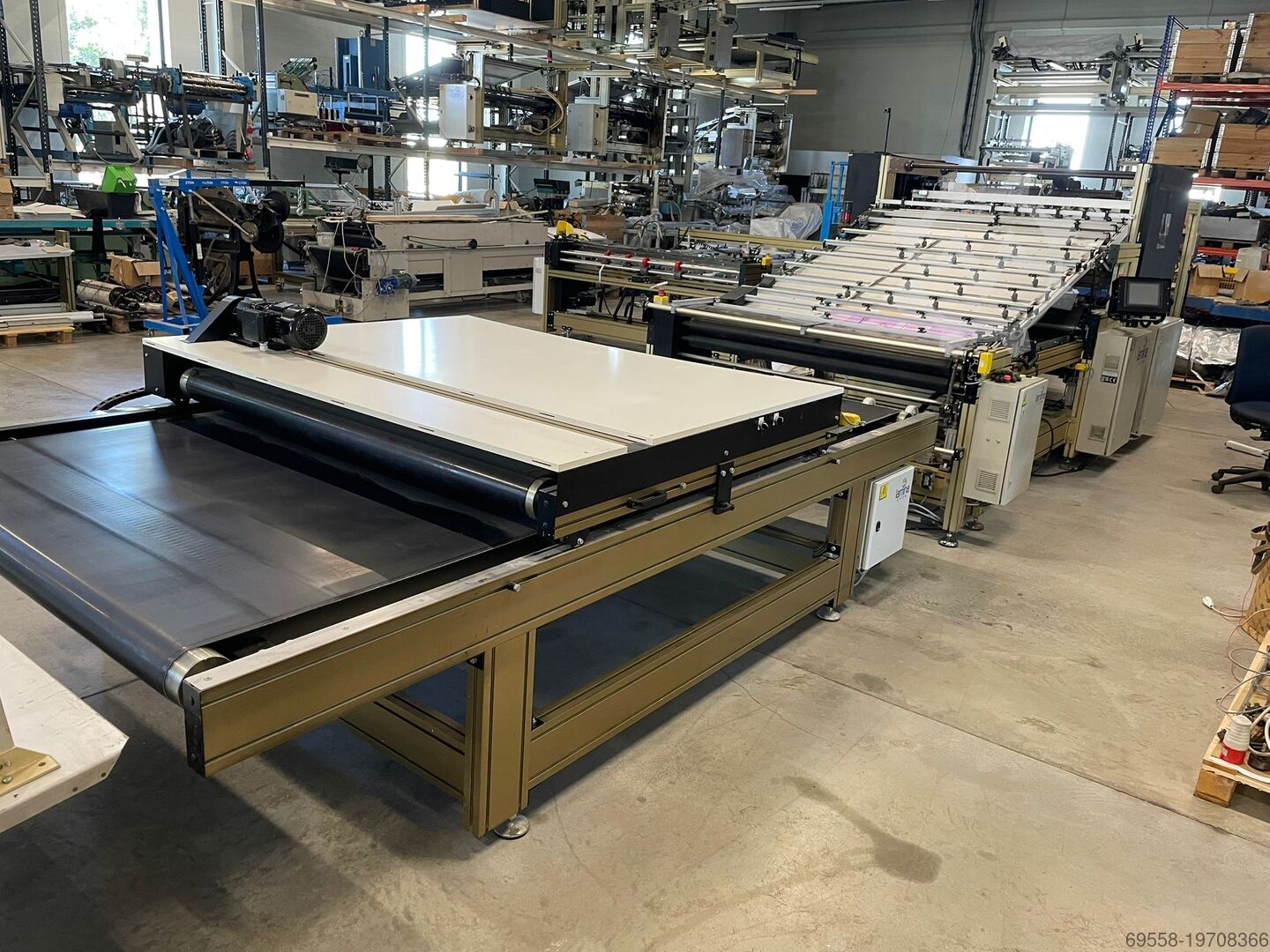

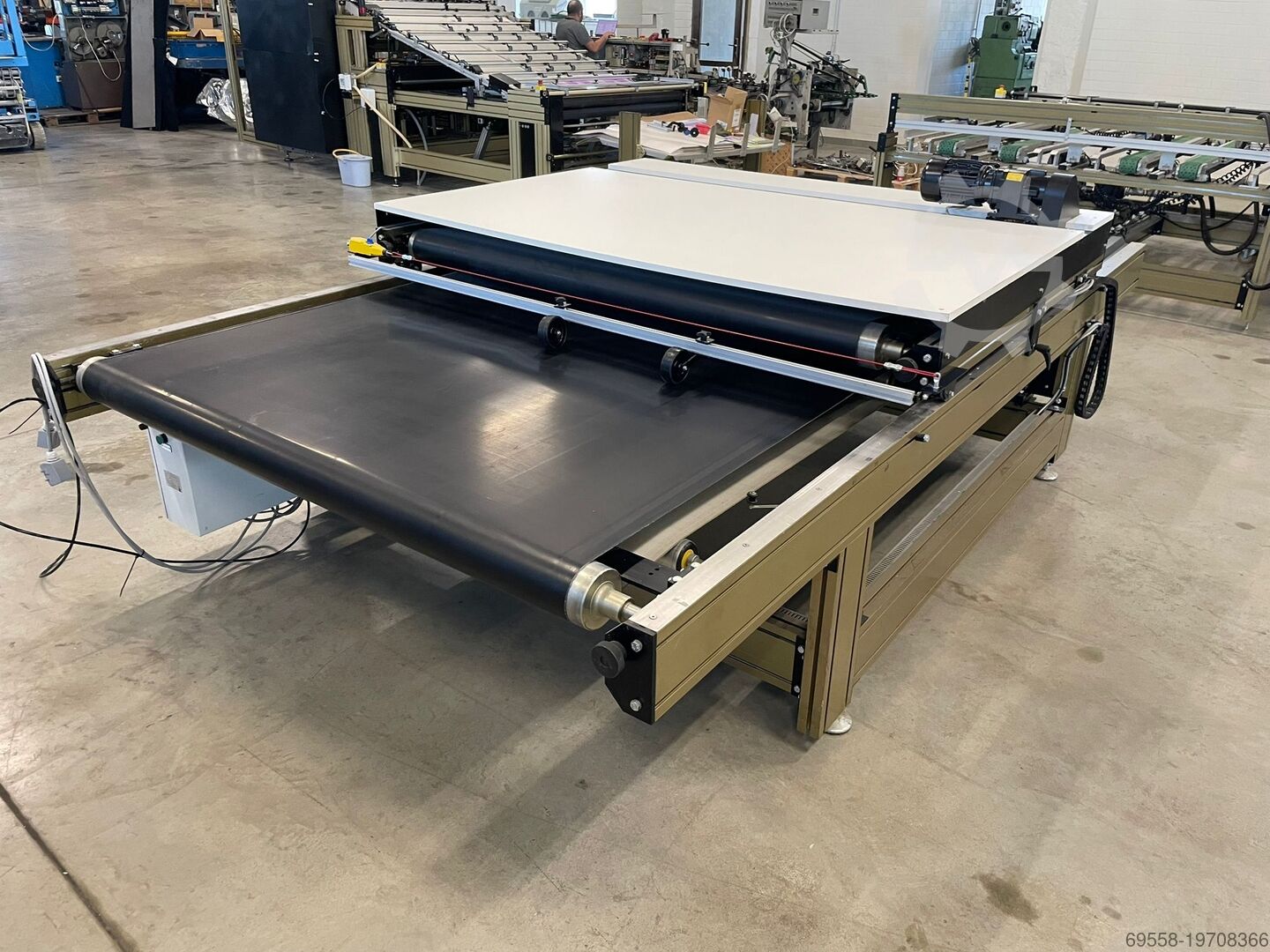

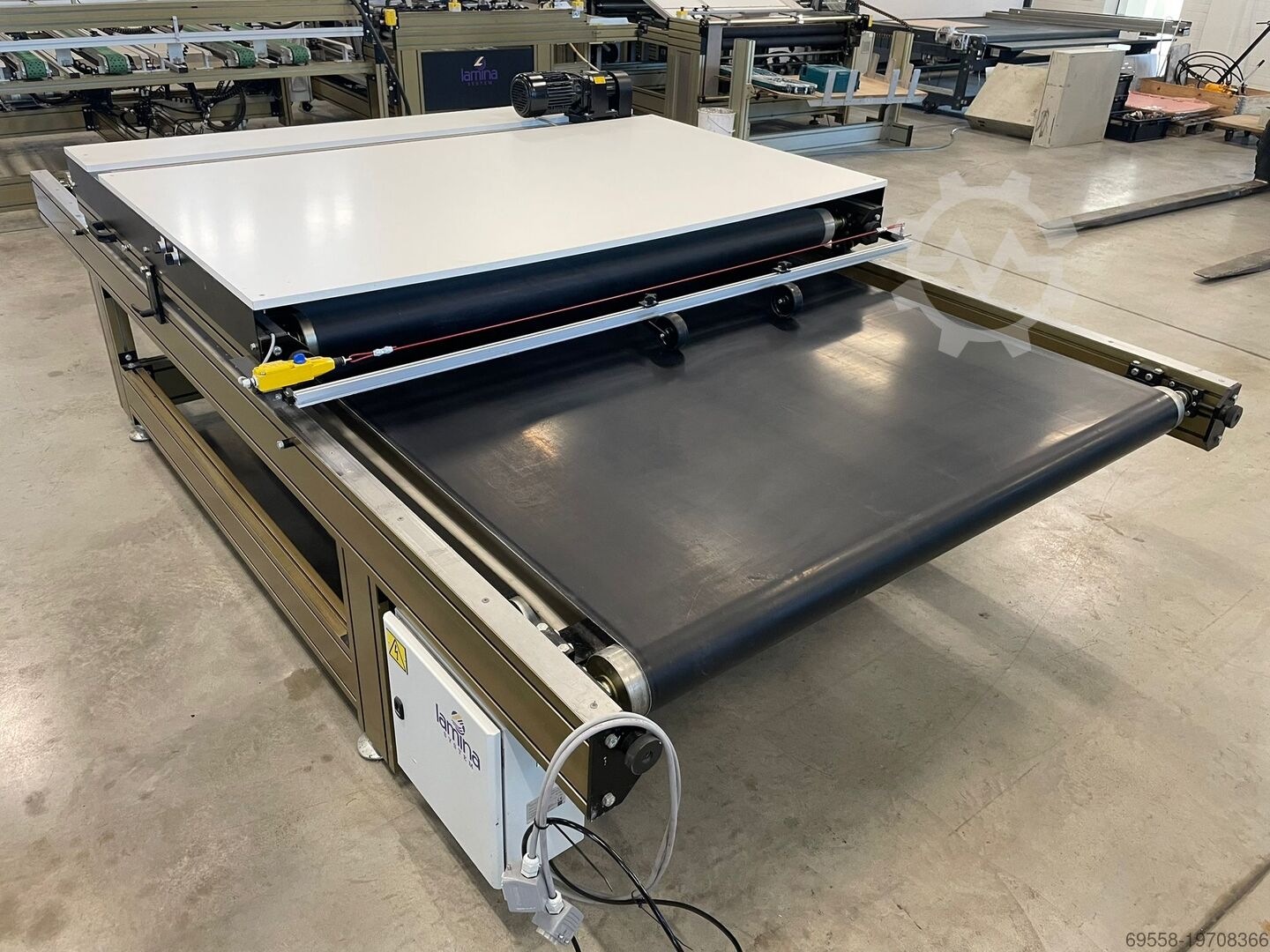

Can be additionally equipped with Optional Laminating Machine PB 1600 Pressure Belt
