CASE-MAKING & LINING
Fully automatic line to coat the outside and the inside parts of game boards composed of 2 or 3 panels – One single material transition – Use of warm glue supplied by glue heaters of our own constrcution – Case gluing without clichés
11,00 €

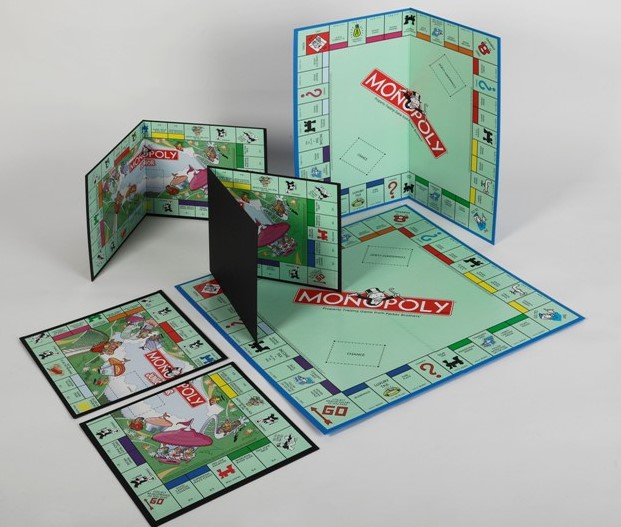

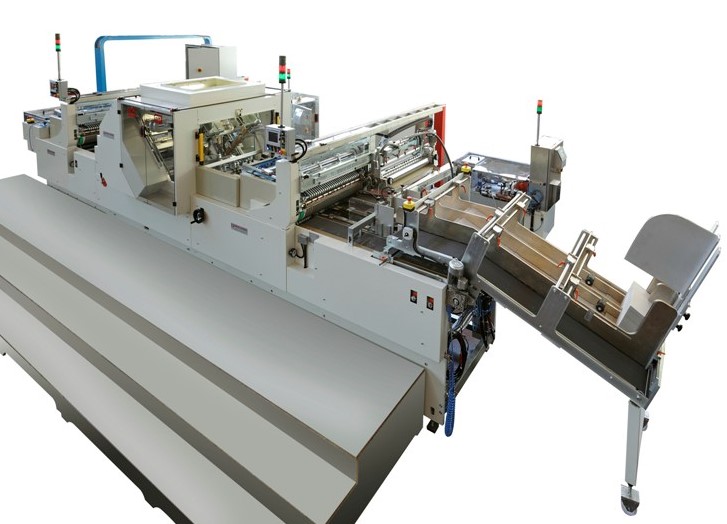

LINEA COVER 900 FOR GAME BOARDS is a fully automatic case-making and lining line specifically designed for covering 2- or 3-panel game boards. The system coats both the inside and outside surfaces using warm glue and supports grey board, paper, plastified paper, polypropylene and similar materials. With a production capacity of up to 50 cycles per minute and case gluing without clichés, it provides an efficient and flexible solution for industrial game board production.
Used materials :
— grey board
— paper
— plastified paper
— polypropylene or similar materials
Board thickness: 1 mm up to 4 mm
Coating materials thickness: 80 up to 130 gr/m2
Capacity: up to 50 cycles/min.
Power supply: 17 Kw
Pneumatic consumption : 300 NL/min. (7 bar)
Overall dimensions: L= 7300 mm W= 2700 mm H= 2400 mm
