SEMI-AUTOMATIC MACHINE TO APPLY FROM ONE TO SIX MAGNETS OR METAL PLATES BY USING HOT-MELT GLUE.
Half-automatic machine to groove board cases and to apply magnets (or metal plates) by hot glue

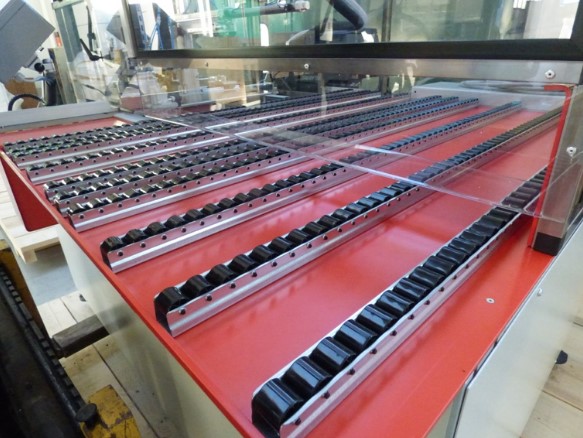

— Board case feeding by hand
— 1 to max 6 magnets per side/1 work cycle.

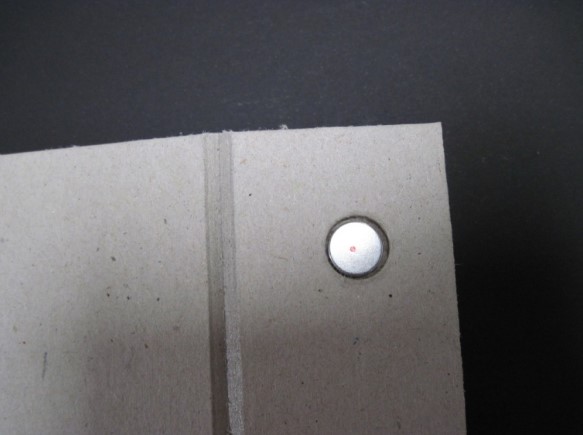

Magnet seat milling, glue application, magnet feeding from charger by fully automatic cycle.

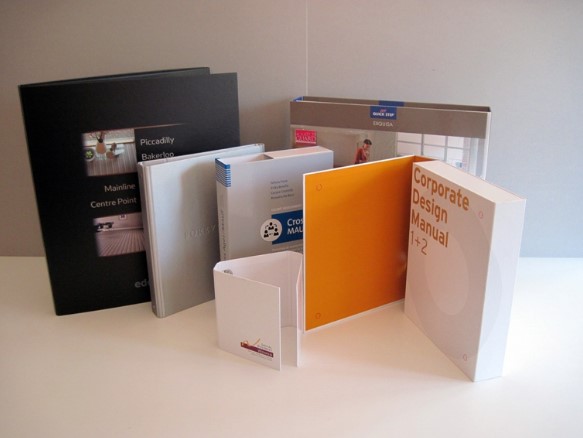

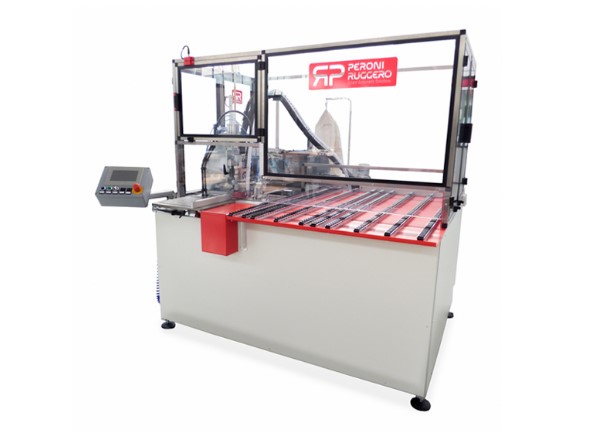

MAG 1 is a semi-automatic machine designed for precise application of magnets and metal plates to rigid and collapsible boxes. Developed for premium packaging applications, it provides accurate positioning of magnetic closing components and offers a flexible solution for customised box production and short to medium production runs.
Used materials:

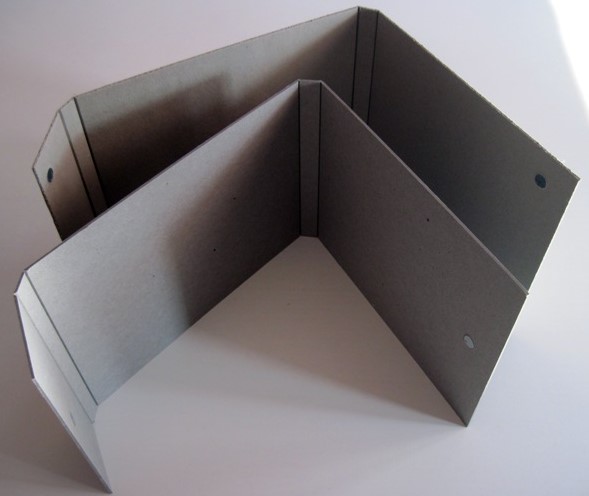

— grey board with thickness 1,5 mm up to 4 mm
— magnets with diam. min. 9,5 mm – max 15 mm/thickness 1/1,5/2 mm
Board width: min. 180 mm – max 1550 mm
Production capacity:
— 14 cycles (with 1 magnet)/minute
— 8 cycles (with 2 magnets)/minute
Power required: 5 Kw
Pneumatic consumption: 150 NL/minute (6 bar)
Overall dimensions: L=2500mm; W=2500mm; H=2100mm;
