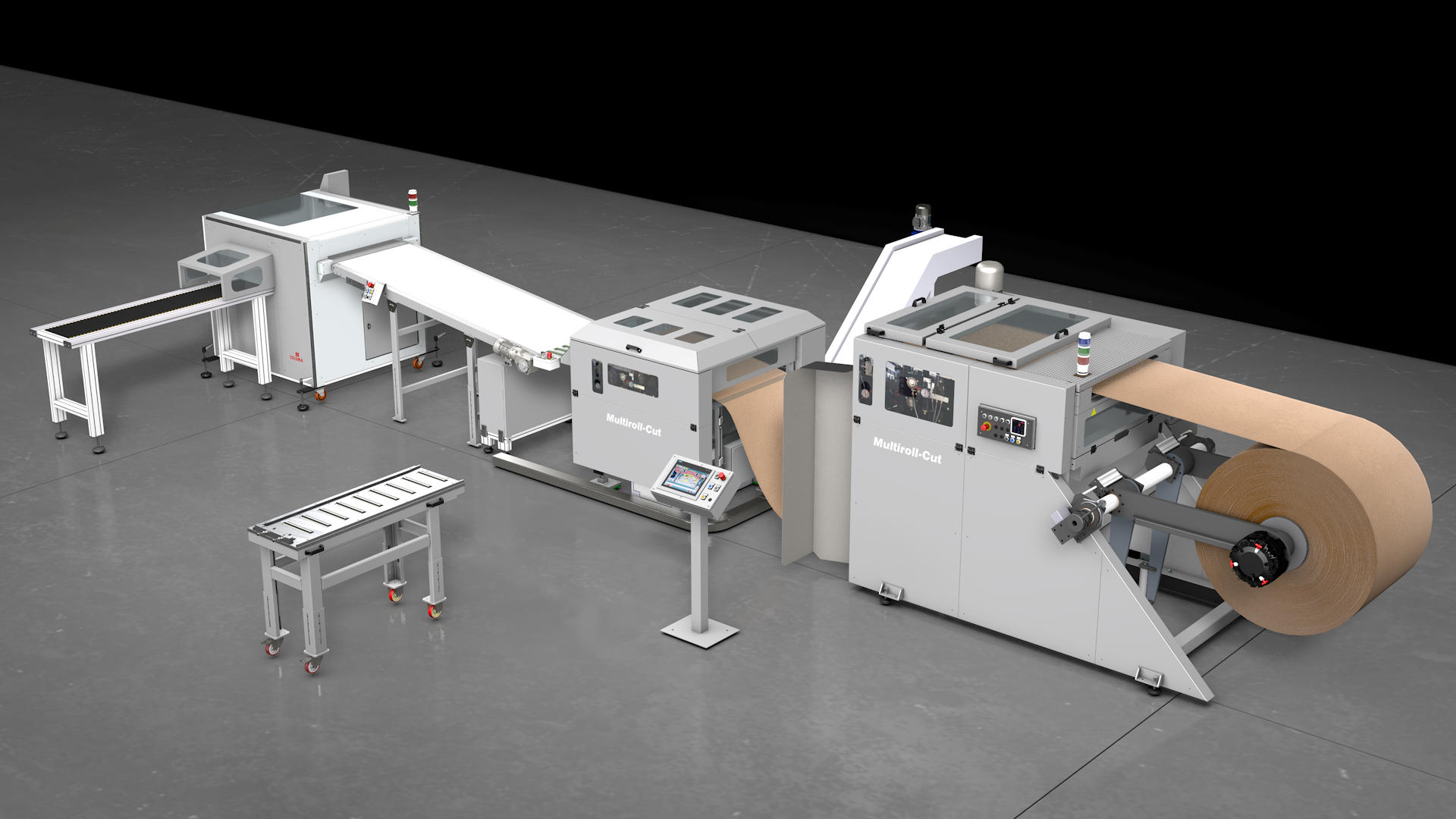

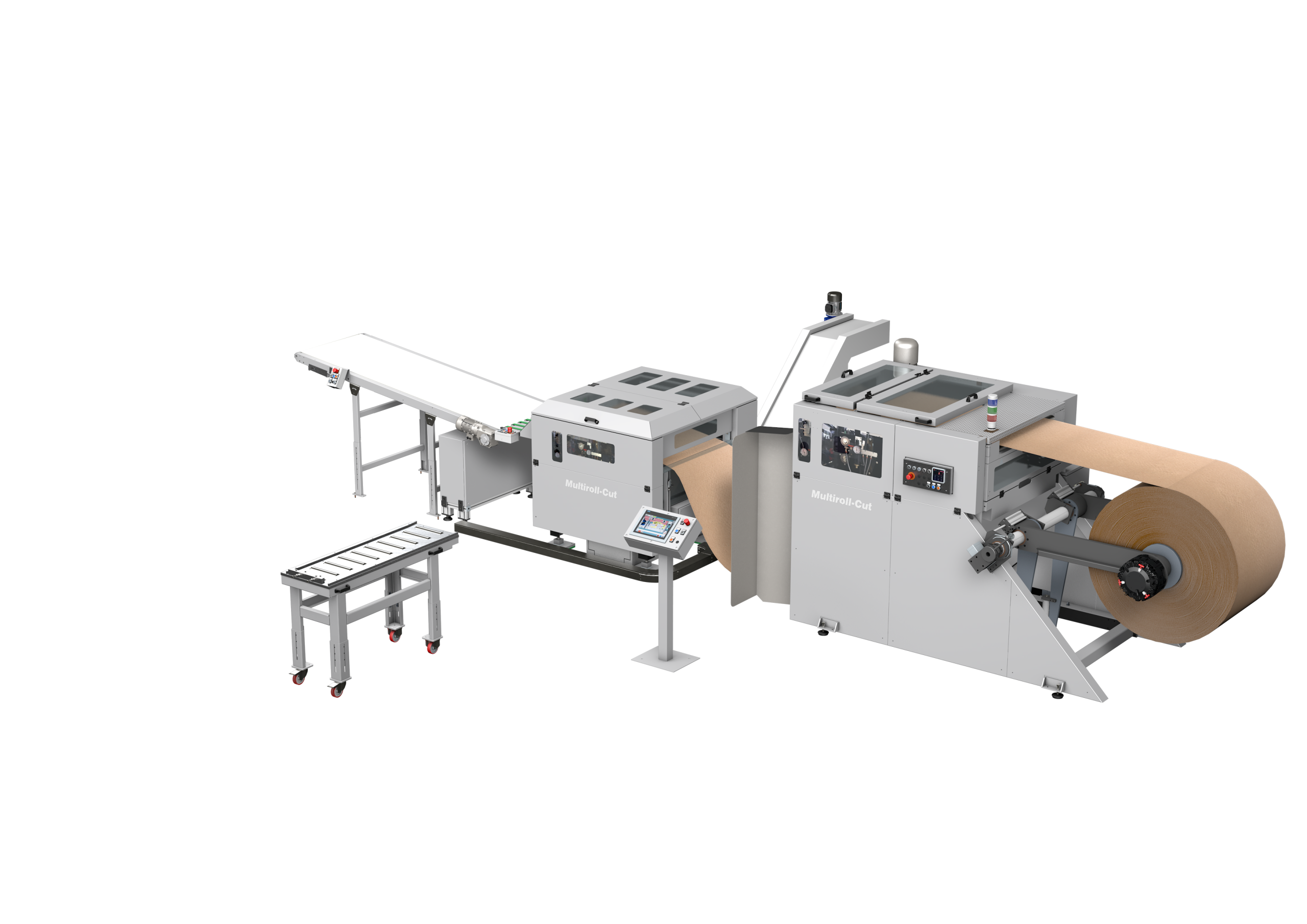

MULTIROLL-CUT is a fully automatic die-cutting machine designed for high-speed production of solid fibre partitions, pads and strips directly from the reel. The system combines continuous unwinding, precision electronic feeding, die-cutting, longitudinal slitting and crosscutting in one integrated process. With speeds of up to 300 cuts/minute and a wide range of customisable die-cutting tools, MULTIROLL-CUT provides an efficient and flexible solution for industrial paperboard converting. (solema.it)
Designed for accurate, high-speed production of solid fiber partitions, pads and strips directly from the reel
| Machine speed | max. 300 cuts/minute |
| Reel dimensions | width: min. 390 mm (15 3⁄8”) — max. 830 mm (32 5⁄8”)
board thickness: min. 0.5 mm (1⁄32”) — max. 1.2 mm (1⁄16”) |
| Crosscutting | min. 10 mm (3⁄8”) — max. 1200 mm (47 1⁄4”) – without punching
min. 38 mm (1 1⁄2”) — max. 400 mm (15 3⁄4”) – punching product |
Slitting, crosscutting and partitions die-cutting all in a single phase;
High precision electronic advancement for highest cutting accuracy;
Accurate and high speed production of solid fiber partitions, pads and strips directly from the reel;
Materials: solid board and single-face glassine paper from the reel;
Simple and fast set up;
Die-cutting unit with various standard die-cutting shapes for partitions slotting and pads cutting;
Customized die-cutting tools with different shapes available on request
