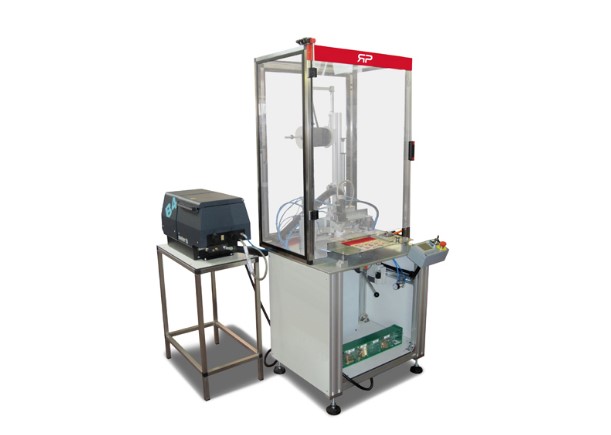

MACHINE TO APPLY ONE ELASTIC PEN LOOP
Semi-automatic machine to apply one elastic pen loop onto agenda and diary cases or onto already cased-in products by hot-melt.
Product feeding by hand
Cycle for elastic band cutting, glue application, loop shaping and closing as a ring fully automatic

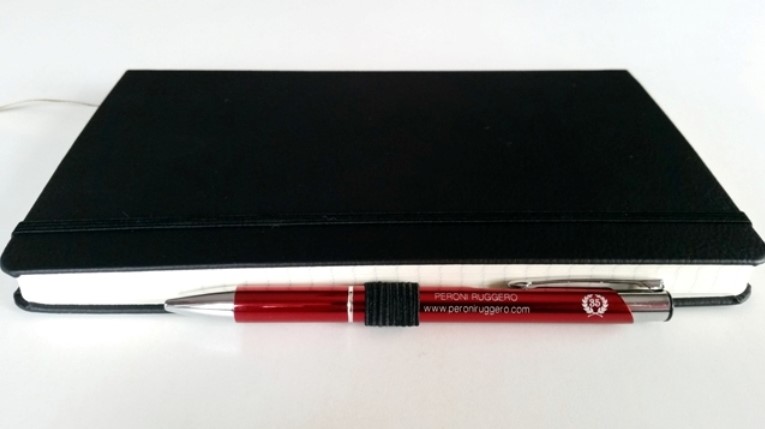

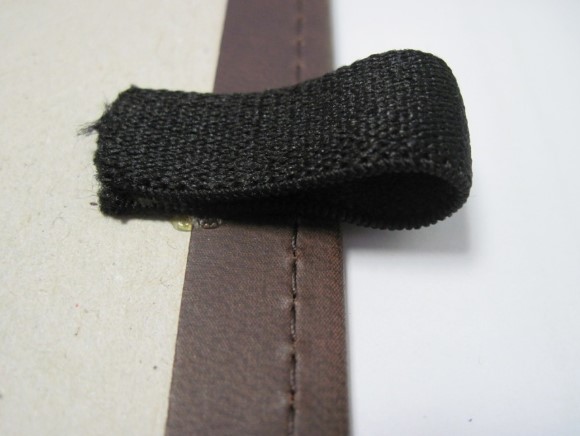

PEN LOOP is a semi-automatic machine designed to apply elastic pen loops to agenda and diary covers, notebooks and already cased-in products. After manual feeding, the machine automatically cuts the elastic band, applies hot-melt adhesive, forms the loop and closes it into a ring. Supporting elastic bands from 8 to 25 mm wide and production speeds of up to 8 pieces/minute, PEN LOOP provides an efficient solution for adding practical pen holders to premium stationery products.
Used materials:

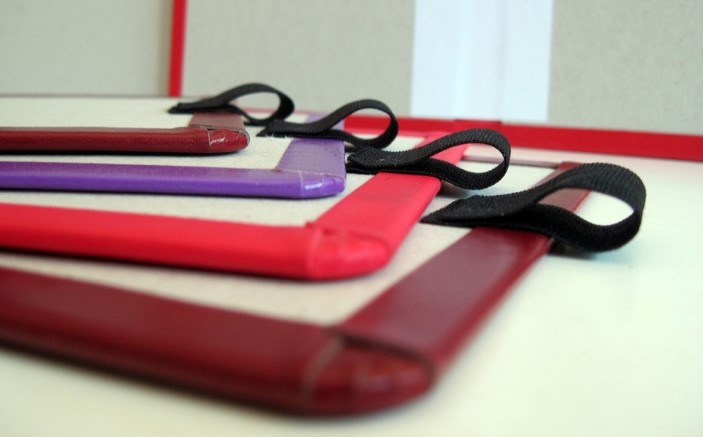

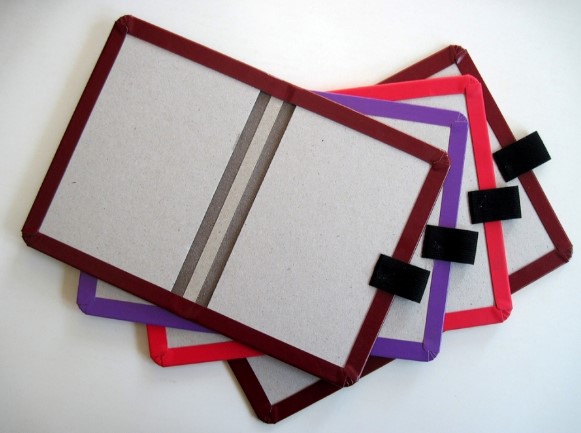

— flat agenda and diary cases or already cased-in products

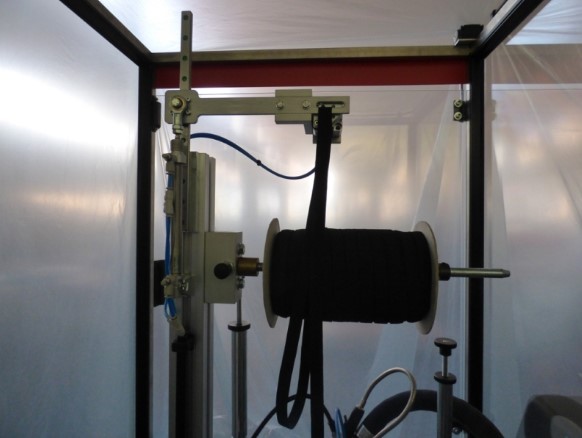

— flat elastic band 8 mm, 10 mm, 12 mm, 15 mm, 18 mm, 20 mm and 25 mm
Elastic width (standard): 8 mm, 10 mm, 12 mm, 15 mm, 18 mm, 20 mm and 25 mm
Pen loop diameter: min. 8 mm – max. 10 mm
Case thickness: min. 1 mm – max. 3,5 mm
Mechanical speed: up to 8pcs./min.
Power required: 4 Kw
Pneumatic consumption: 100 NL/min. (7 bar)
Overall dimensions (gluer included): L=1500 mm; W=1000 mm; H=2000 mm;
