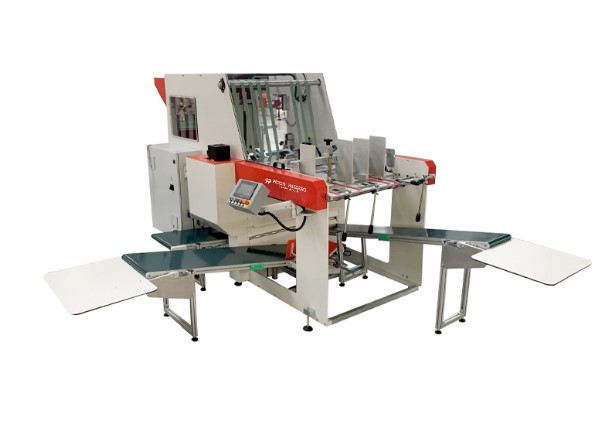

SC/P 1000

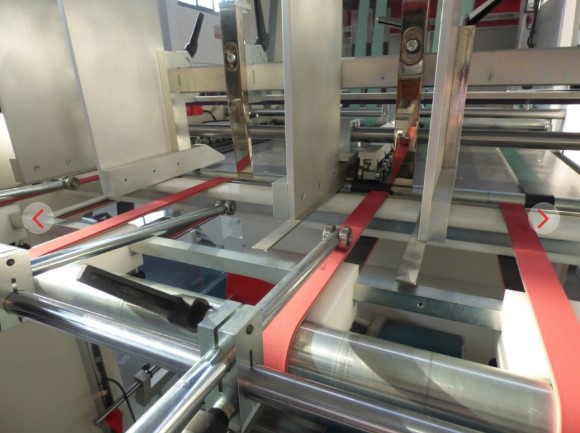

SC/P 1000 - Image 2

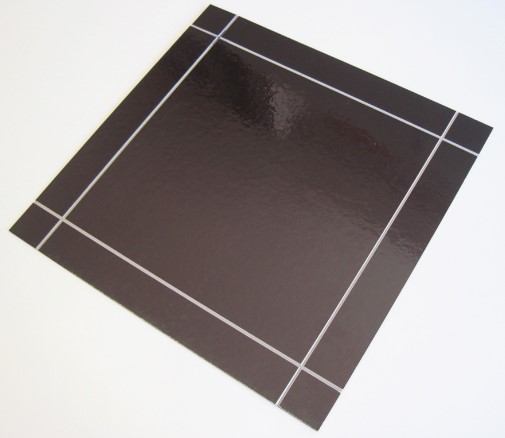

SC/P 1000 - Image 3

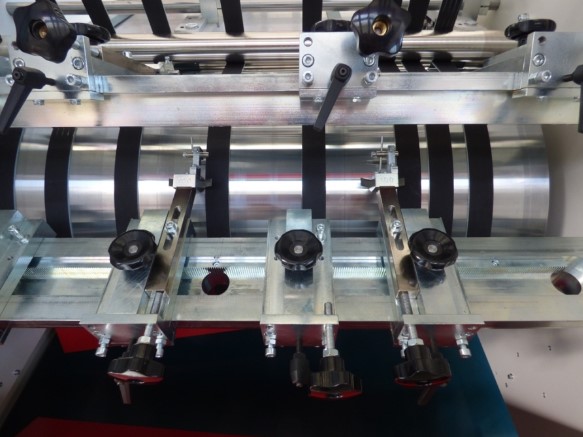

SC/P 1000 - Image 4

SC/P 1000

SC/T 1000
AUTOMATIC ROTATIVE GROOVING MACHINE FOR BOARD CASES
Automatic rotative grooving machine for board cases, supplied with a double feeder, grooving unit for “V” and “U” cuts, in-line corner cutting device.

Download Brochure (PDF)
REQUEST INQUIRY
  • Automatic Rotary Grooving
  • Double Feeding & Delivery
  • V & U-Shape Grooving
  • High Production Speed
  • Wide Board Size Range

SC/P 1000 is an automatic rotary grooving machine designed for high-speed production of rigid board cases and luxury packaging. Equipped with a double feeder, grooving unit and double delivery system, it performs precise V-shaped grooves and optional U-shaped grooves in boards from 1 to 4 mm thick. With speeds of up to 40 m/min, SC/P 1000 provides an efficient and reliable solution for industrial rigid box production.

Technical specification

Cardboard sizes:
min. 130 x 130mm – max. 700 x 700mm
max. 1.040mm (width) x 700mm, if manually fed
max. 950mm (width) by double feeder
Cardboard thickness:
min. 1mm – max. 4mm
Tools:
— Nr.8 “V” shape groove from 80° to 130°
— “U” shape groove from 6mm to 8mm (optional)
Wheelbase:
min. 70mm – no limits if grooving blades are installed on two bars
Mechanical speed:
40m/min. (from 40 to 260 pcs/min. according to the cardboard size).
