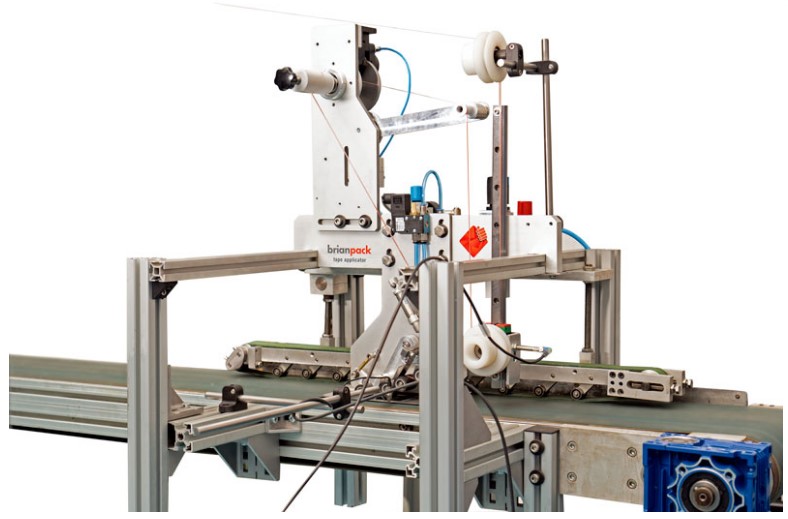

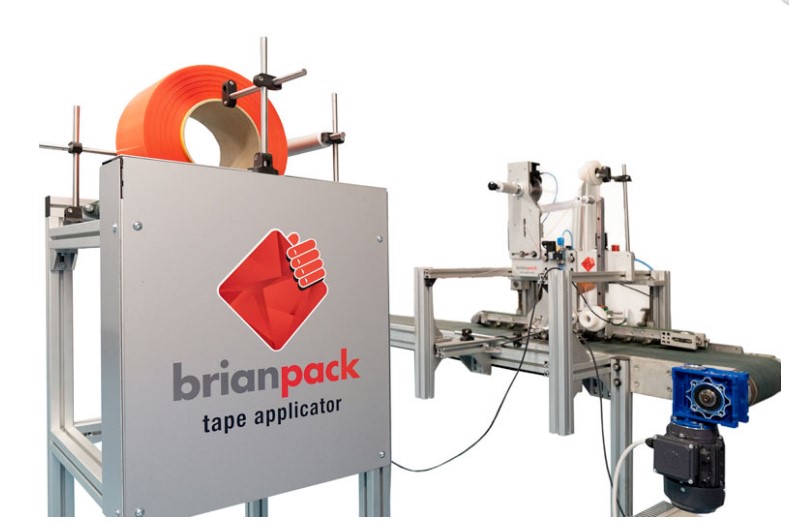

The tape applicator T19, T20 connects to the PLC glue systems of the folder/glue.
We can supply as an option: PLC and Jumbo unwinder for big roll.
Belt width: (min – max) from 4 mm to 35 mm standard, 45 mm on request.
Production Max:120 pcs/min.
Weight min:150 g / m2.
Mechanical speed:10-150 m / min.
Min.distance between two applications:25 mm.
Min. distance of the tape from edge of the sheet: 10 mm.
Max. length applicable tape: 999 mm.
Min. length applicable tape: 40 mm.
Max. diameter external reel: 480 mm
Internal diameter reel: 76 mm.

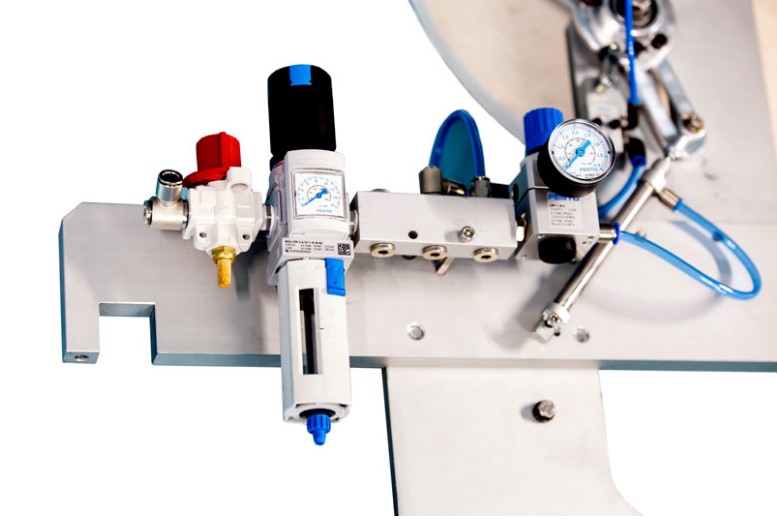

Feeding: electro pneumatical.
