The Bickers-JMP TAPEJET

The Bickers-JMP TAPEJET

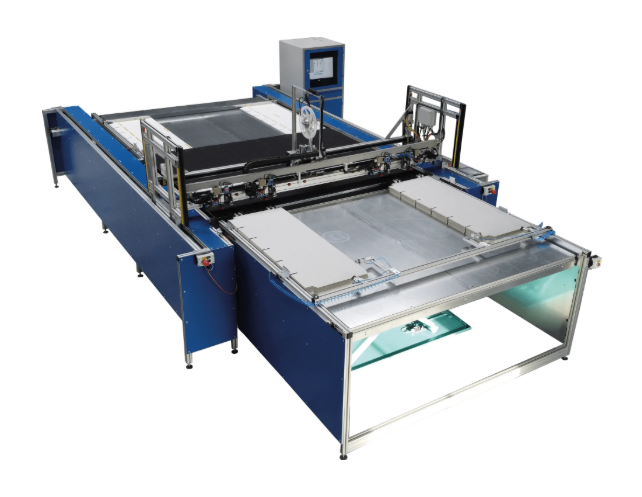

The Bickers-JMP TAPEJET® is the solution to all your taping requirements. The TAPEJETS are multi-axis servo-controlled automatic taping machines suitable for many industries, from packaging to vehicle manufacture. In automatic mode they are practically self-sufficient enabling just one operator to mind several machines, replacing tape rolls and material as required.

11,00 €

Download Brochure (PDF)
REQUEST INQUIRY
  • Automatic Double-Sided Tape Application
  • Precise & Consistent Tape Placement
  • Ideal for Packaging & POS Displays
  • Flexible Tape Configurations
  • Boosts Production Efficiency
There are almost no limits to the direction of the tape application. The processing speed can be set at any value from 0.1 to 0.8 m/sec. The smooth function of the equipment is maintained and managed using a logical control unit. Desired tape patterns are programmed quickly and simply managed using a joystick and laser pointer.
Bickers-JMP TAPEJET® provides an accurate, repeatable tape application and can handle standard and speciality tapes in different widths for a wide range of products.
Advantage:
When compared to taping by hand, this machine makes huge increase to productivity and quality meaning a fast return on investment.
The unit is equipped:
with integrated electro-mechanical elevating table with max. 350 mm stack height

Application area in mm: 1990×3000 mm
(1900×1500 mm when using the pick and place function)

Processing speed: adjustable from 0,1 to 0,8 m/sec.

Working height: 980 mm

Suitable tapes: Standard and special tapes from 12-25 mm width
Further roll widths on request

Min. application length: 25 mm

Max. roll dia.: 320 mm

Roll core dia.: 76 mm

Modul PI2 R: Equally divided elevating roller tables with automatic readjustment of stack height and pile stacking by pick and place function

Stack height: Max. 310 mm

Modem for remote service: Standard on all models

Program memory: 995 programs

Option DXF: Interface for input of DXF files additional option)

Electrical supply: 230V, 50 Hz, 32A

Compressed air supply: 6 bar / 100 l/min

Custom-built machines and sizes: on request



All Bickers-JMP machines are equipped with a remote service unit that can be accessed on demand via a modem to the machine. This allows complex problems to be solved easily and efficiently from the distance.
