The Lamina Working Station is a free standing module or an option for the Hot-Melt Gluer. As an option the free standing module can be equipped with its own programmable Hot-Melt unit for up to 4 glue guns.
11,00 €

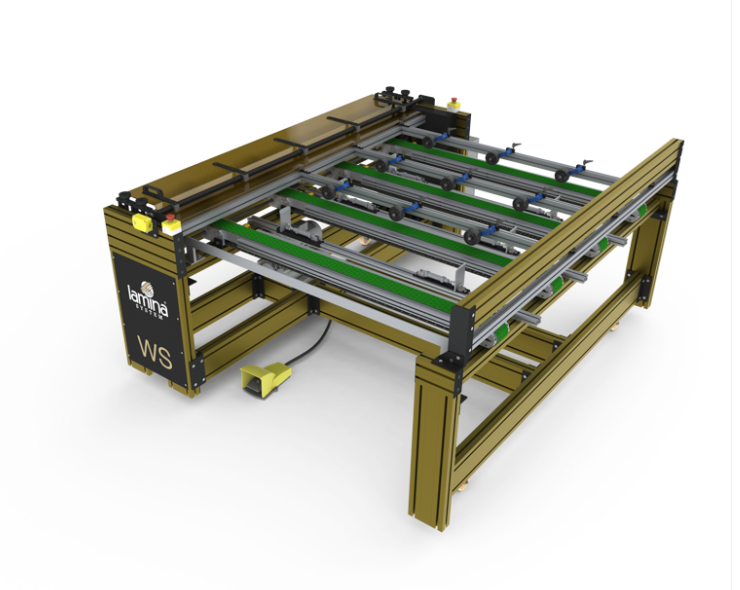

The Lamina Working Station is an option for the Lamina Gluer. The product is fed through the Gluer, which applies the programmed glue lines and continues into the Working Station, where it is positioned on the vacuum belts. The second piece is mounted and positioned by using side lays and pneumatic stops for high-quality finishing. The unit is adjustable to suit a range of products from single to multi-part displays and boxes, large back supports, shelves, and much more.

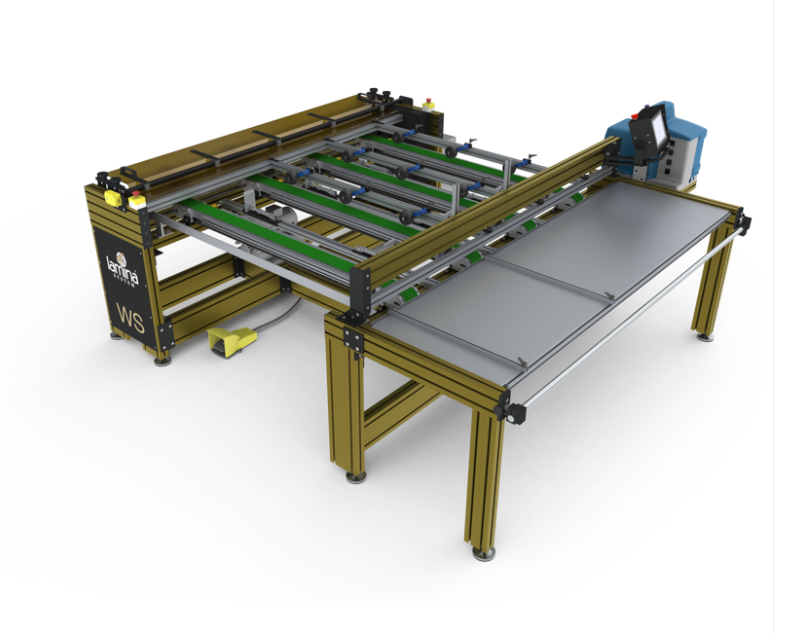

The Lamina Free Standing Working Station is a highly exible machine for hot-melt gluing where cold gluing could be added as an option.
The material is passing two pressure rollers in the end of the machine for a perfect tack.
The registration is +/- 1 mm and is done with a combination of a photocell and a pusher guide. The operator is using side lays to get an easy mounting procedure in the station.
